All Aluminum Alloy Conductor AAAC
Scan the QR code
Stands for All Aluminum Alloy Conductor
Adding alloying elements such as magnesium and silicon enhances the mechanical strength of AAAC conductors compared to AAC conductors.
AAAC conductors carry electricity efficiently.
LIGHTER WEIGHT
Have good ampacity
Have good flexibility
Introduction

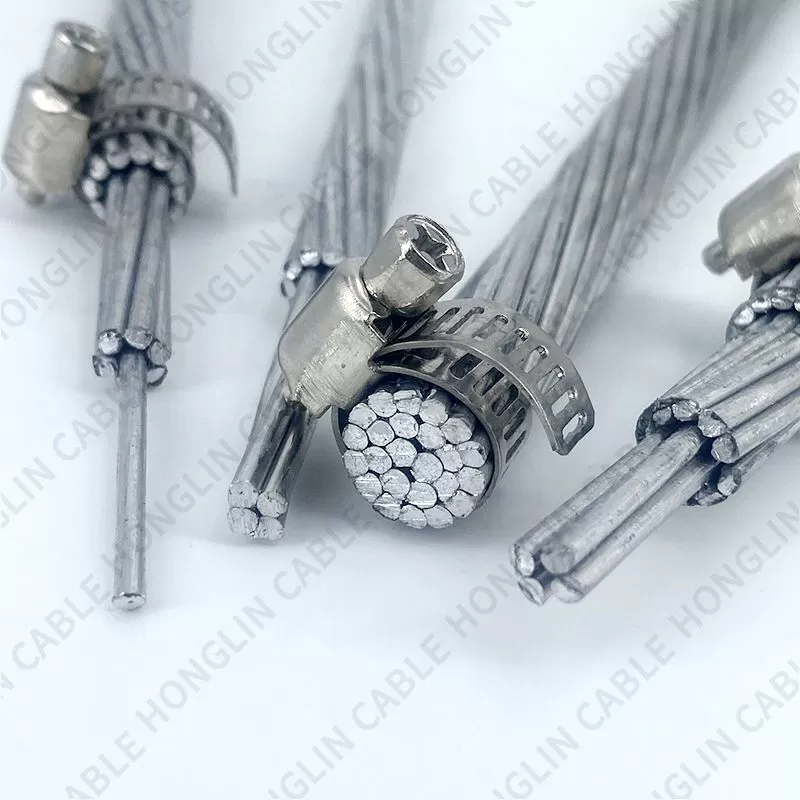

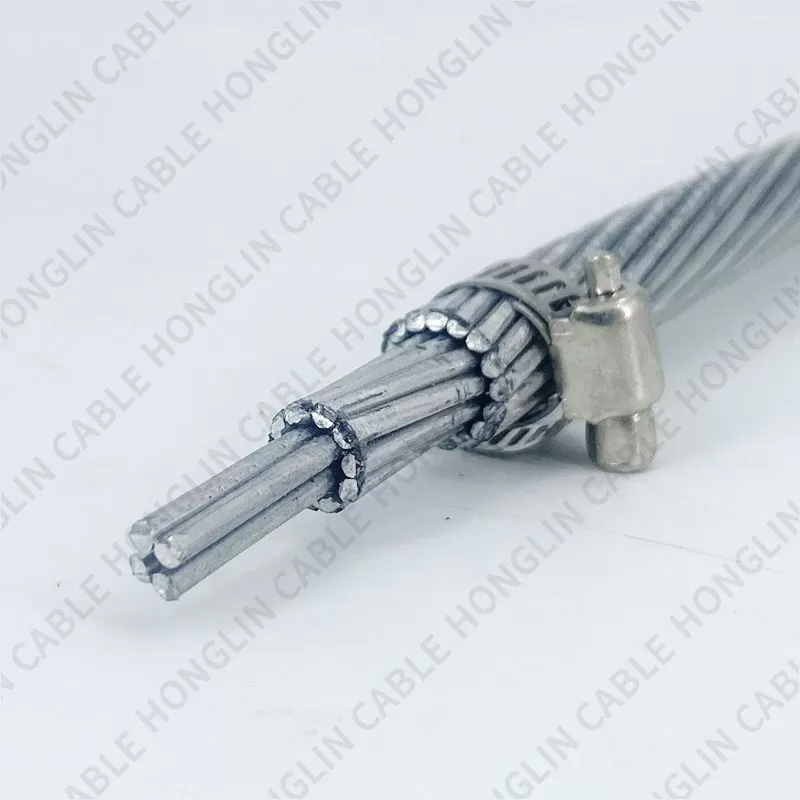

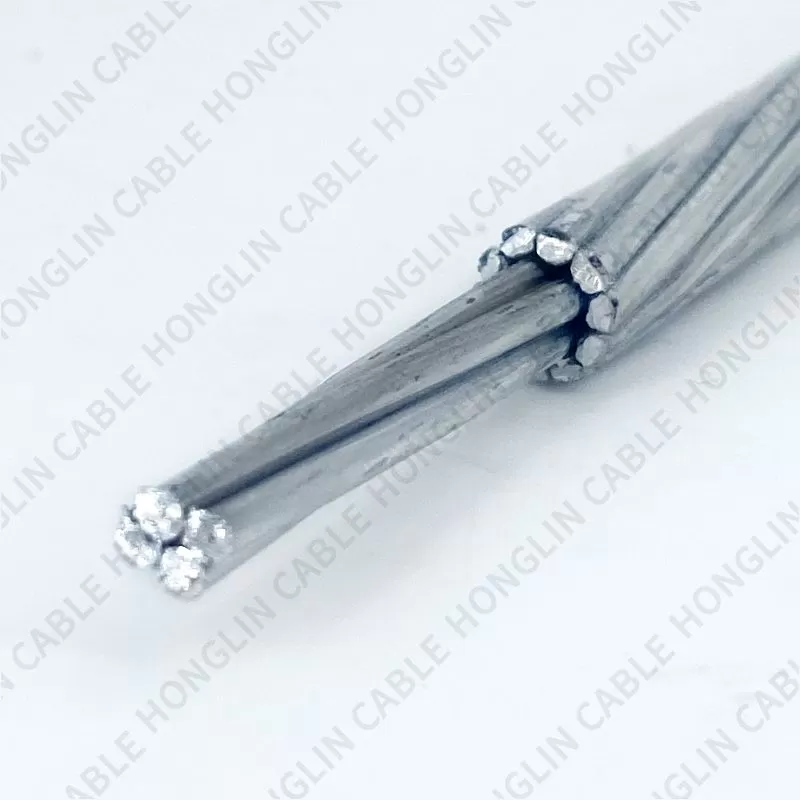

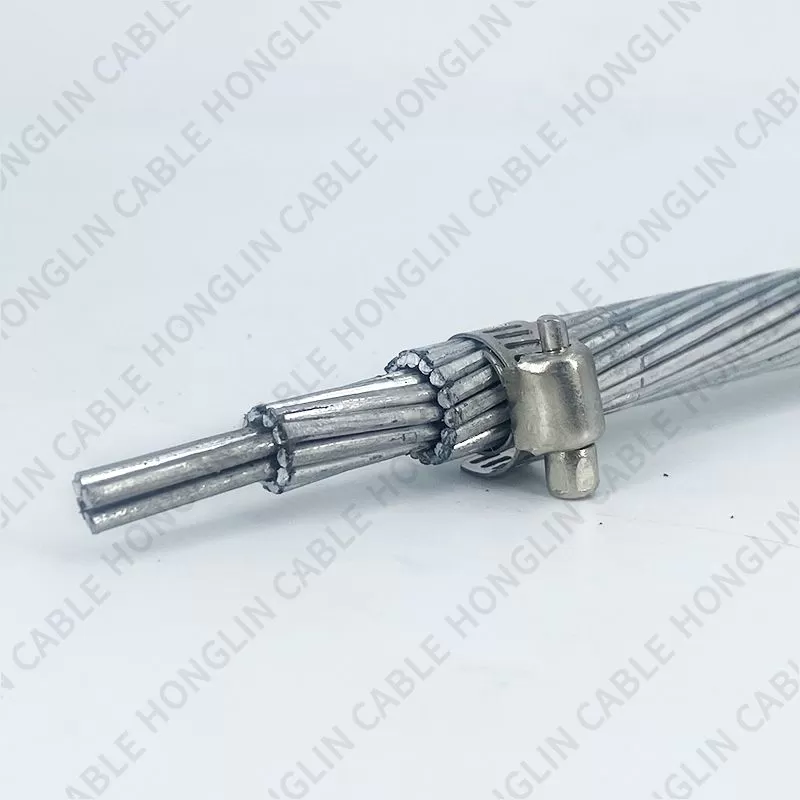

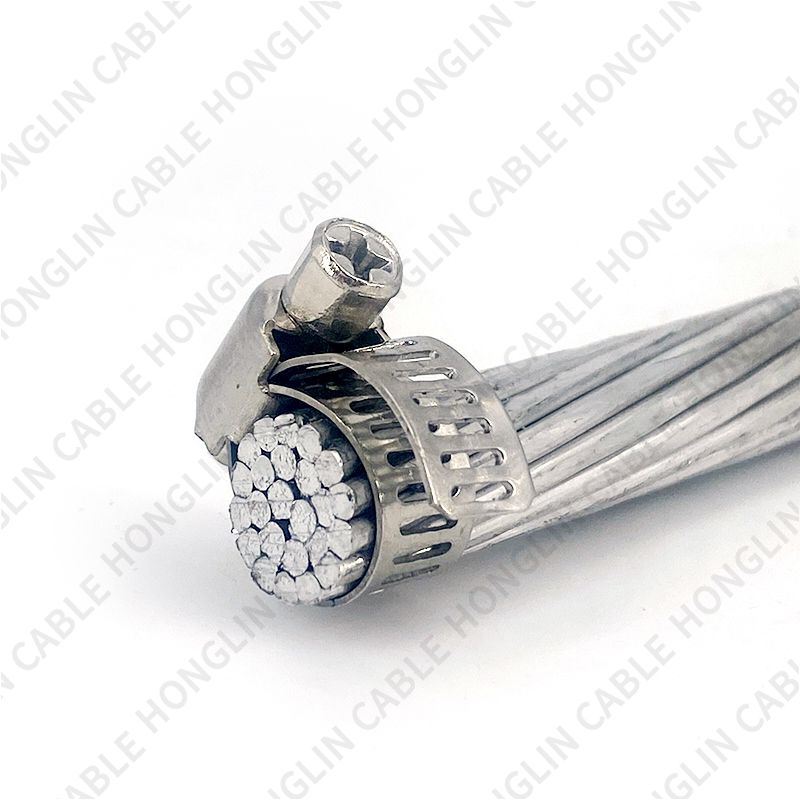

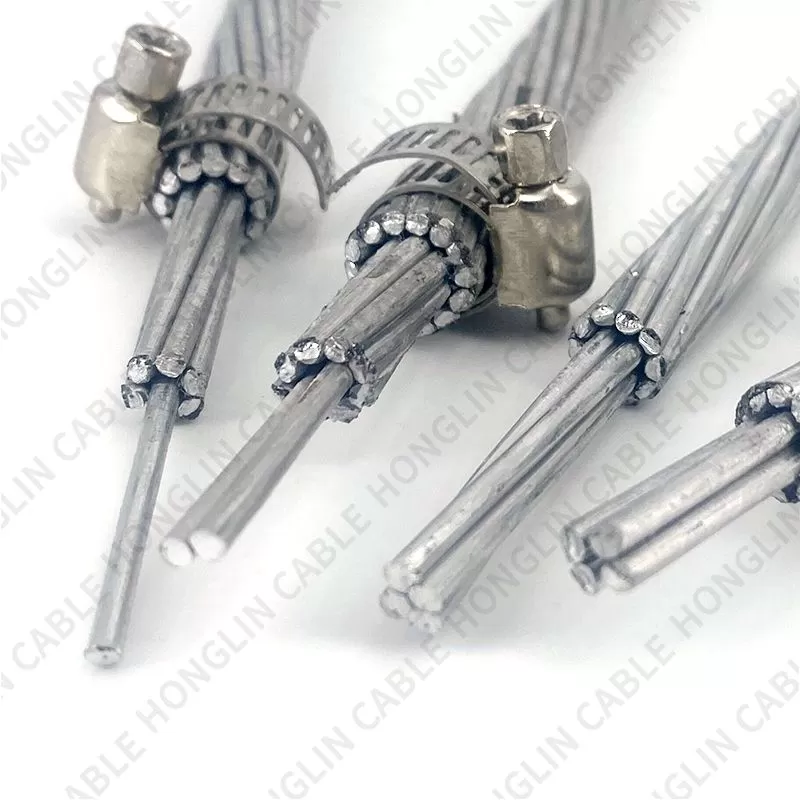

The conductor consists of Aluminum Magnesium-Silicon alloy wires in successive layers in opposite direction. Grease may be applied between the layers of AAAC except the outer layer.
Application
AAAC bare conductors are used for primary and secondary overhead power transmission lines having long spans and high resistance to corrosion.
Specification
IEC Sizes IEC 61089:1991
| Code Word | Stranding&Wire Diameter | Overall Diameter | Sectional Area | Approximate Weight | Breaking Load | DC Resistance |
| mm | mm | mm² | kg/km | kN | ohm/km | |
| 10 | 7/1.35 | 4.05 | 10 | 27.4 | 1.95 | 2.8633 |
| 16 | 7/1.71 | 5.12 | 16 | 43.8 | 3.04 | 1.7896 |
| 25 | 7/2.13 | 6.40 | 25 | 68.4 | 4.50 | 1.1453 |
| 40 | 7/2.70 | 8.09 | 40 | 109.4 | 6.80 | 0.7158 |
| 63 | 7/3.39 | 10.20 | 63 | 172.3 | 10.39 | 0.4545 |
| 100 | 19/2.59 | 12.90 | 100 | 274.8 | 17.00 | 0.2877 |
Component composition
Packaging: wooden barrel
Goods: finished product + wooden barrel packaging
Certification
Manufacturing process
There are nine steps in the low-voltage power cable production process：stranding machine; extrud; cooling; diameter measurement; Bearing winch; Set meter counter; testing; Spark test; packing
Payment Method
T/T; L/C ; Western Union
