Bare Acsr Conductor Aluminum Cable ACSR
Scan the QR code

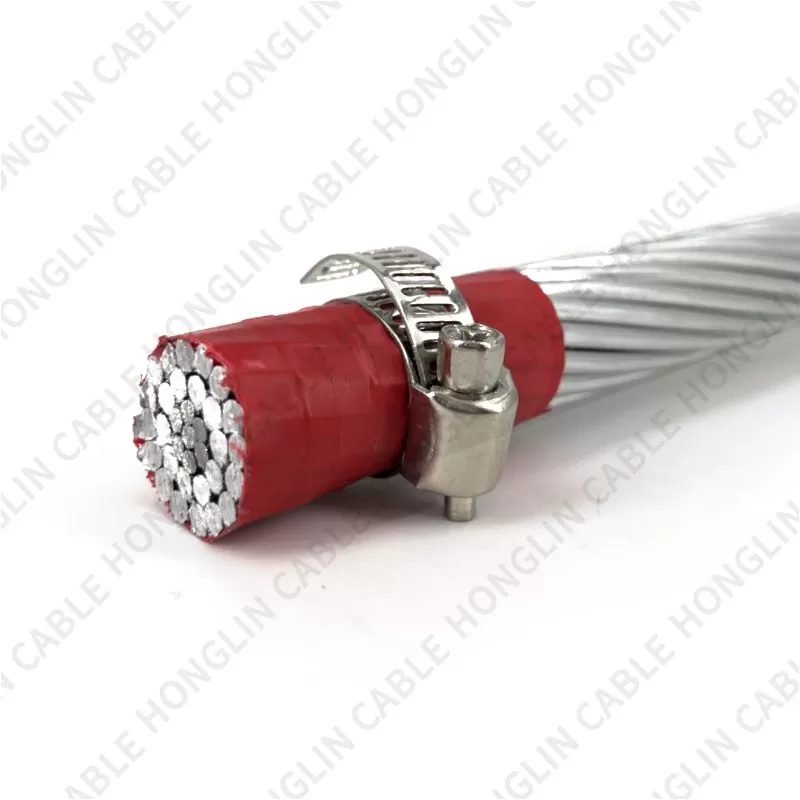

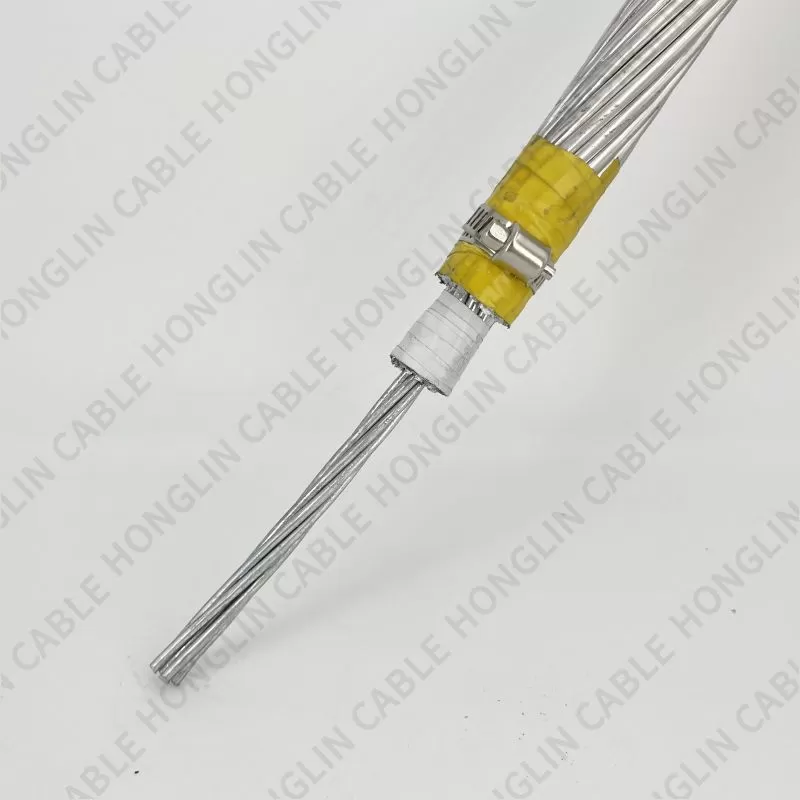

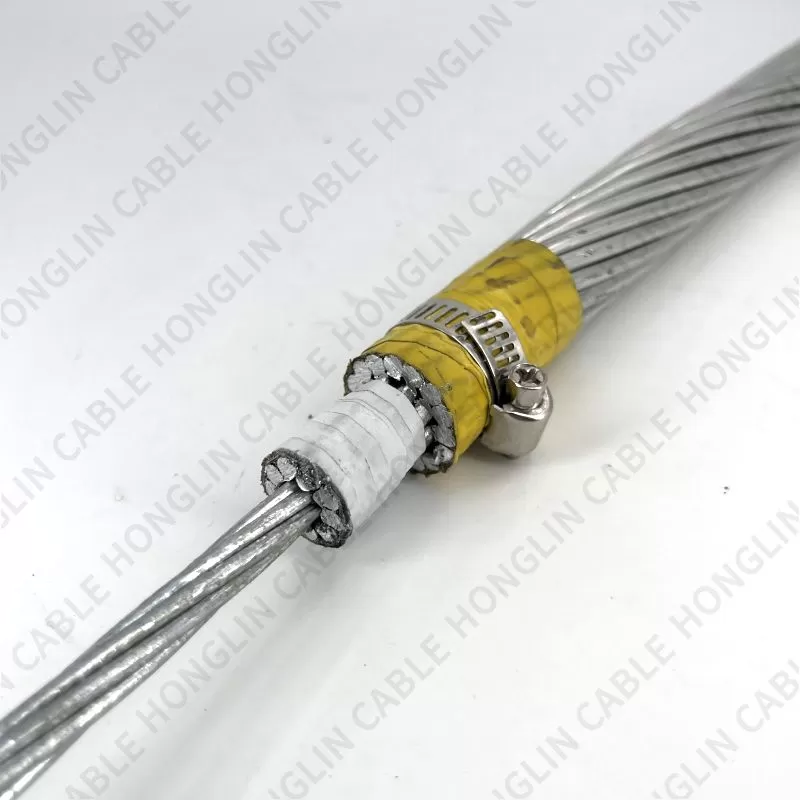

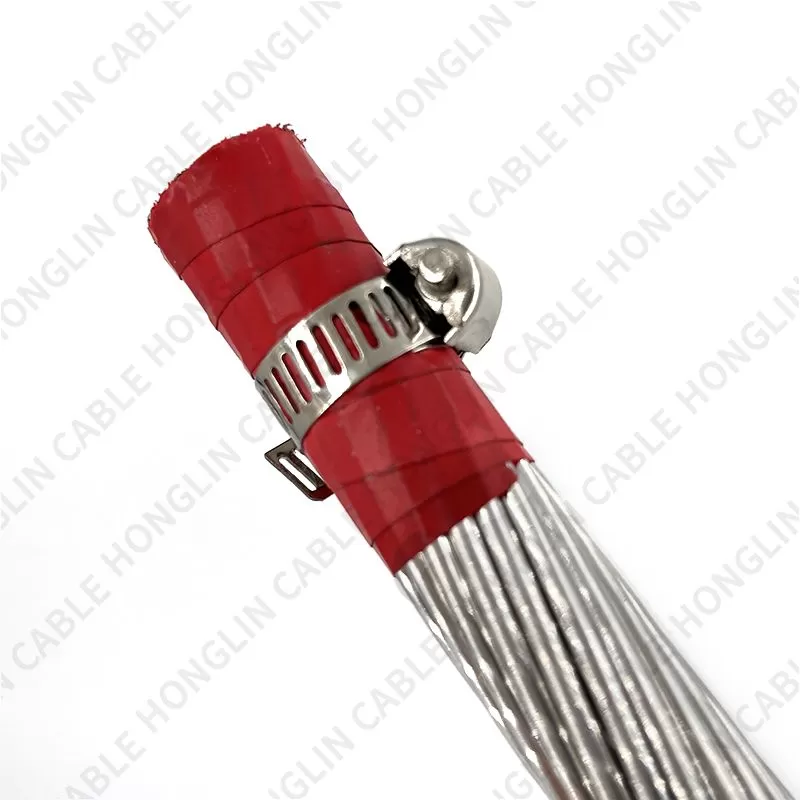

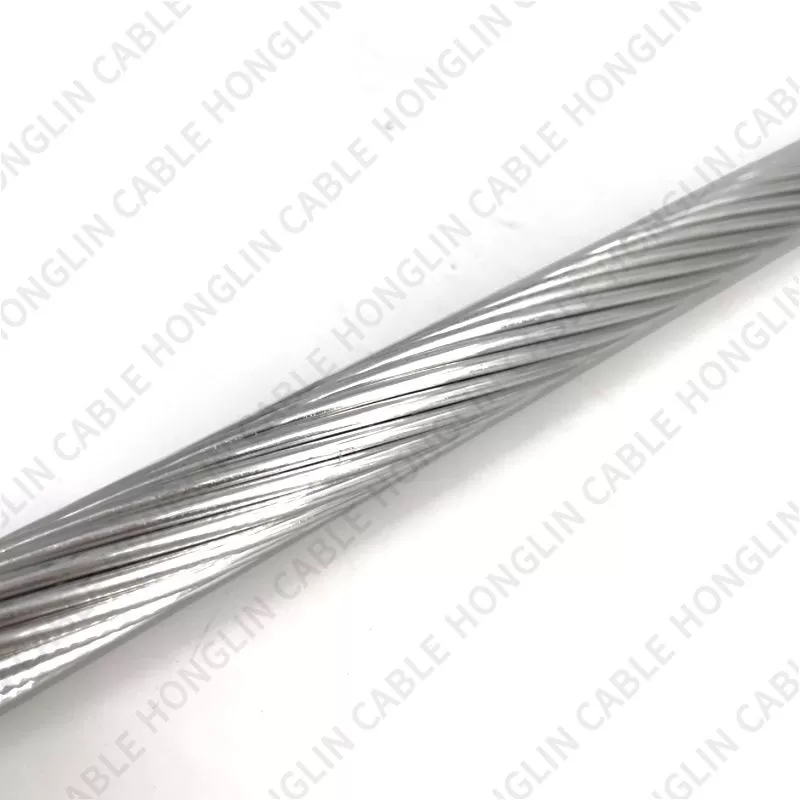

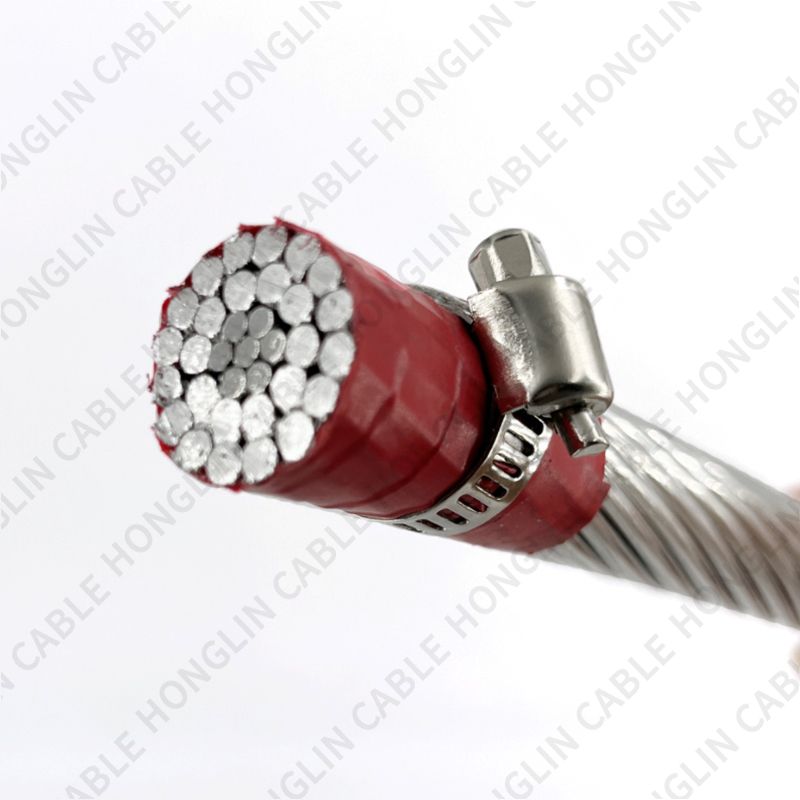

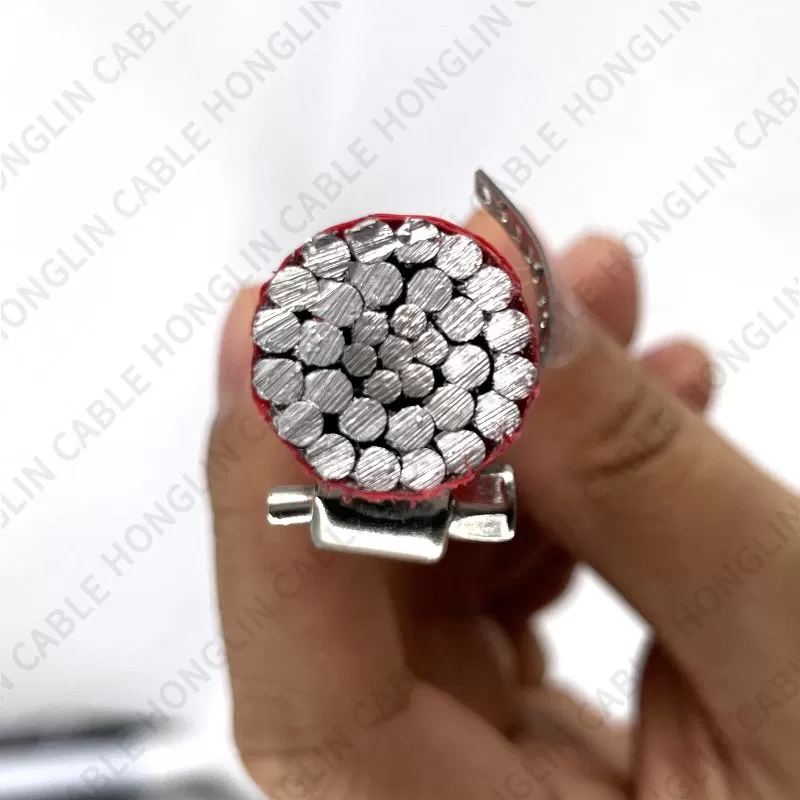

Steel-core aluminum stranded conductors combine the strength of steel with the conductivity of aluminum.
ACSR conductors have high Ampacity, which refers to their ability to carry current without overheating. The steel core helps dissipate the heat generated during operation, making ACSR suitable for applications requiring high current carrying capabilities.
ACSR conductors are known for their ability to span long distances between transmission towers or support structures
The steel core in ACSR conductors helps minimize sag under heavy loads and high temperature conditions.
Corrosion Resistance
Introduction
ACSR stands for Aluminum Core Steel Stranded Conductor. It is an overhead transmission and distribution conductor consisting of a central steel core surrounded by one or more layers of aluminum strands.
Application
ACSR/AW cables are used for overhead transmission and distribution lines. Also, as neutral messenger for low voltage multiplex cables.
Specification
| Code Word | Stranding&Wire Diameter | OverallDiameter | Sectional Area | ApproximateWeight | BreakingLoad | DCResistance | |||
| Aluminum | Steel | Aluminum | Steel | Total | |||||
| mm | mm | mm | mm² | mm² | mm² | KN | ohm/km | A | |
| 16 | 6/1.81 | 1/1.81 | 5.43 | 15 | 2.56 | 17.9 | 59.0 | 17.923 | |
| 25 | 6/2.26 | 1/2.26 | 6.78 | 24 | 4.00 | 28 | 92.1 | 9.00 | 11.471 |
| 40 | 6/2.85 | 1/2.85 | 8.55 | 38 | 6.40 | 44.8 | 147.4 | 14.21 | 0.7169 |
| 63 | 6/3.58 | 1/3.58 | 10.7 | 60 | 10.08 | 70.6 | 232.2 | 21.17 | 0.4552 |
| 100 | 6/4.51 | 1/4.51 | 13.5 | 96 | 16.00 | 112 | 368.6 | 21.84 | 0.2868 |
| 125 | 18/2.95 | 1/2.95 | 14.8 | 123 | 6.85 | 130 | 384.3 | 29.18 | 0.2304 |
| 125 | 26/2.43 | 7/1.89 | 15.4 | 120 | 19.6 | 140 | 460.8 | 44.49 | 0.2308 |
| 160 | 18/3.34 | 1/3.34 | 16.7 | 158 | 8.77 | 167 | 491.9 | 36.48 | 0.1800 |
| 200 | 26/2.74 | 7/2.13 | 17.4 | 154 | 25.0 | 179 | 589.9 | 56.18 | 0.1803 |
| 200 | 18/3.74 | 1/3.74 | 18.7 | 197 | 10.96 | 208 | 614.9 | 43.62 | 0.1440 |
| 250 | 26/3.07 | 7/2.39 | 19.4 | 192 | 31.3 | 223 | 737.2 | 69.27 | 0.1443 |
| 250 | 22/3.76 | 7/2.09 | 21.3 | 244 | 24.0 | 268 | 830.9 | 67.80 | 0.1153 |
| 315 | 26/3.43 | 7/2.67 | 21.7 | 240 | 39.1 | 279 | 921.5 | 86.58 | 0.1154 |
| 315 | 45/2.96 | 7/1.97 | 23.7 | 310 | 21.4 | 331 | 996.4 | 78.33 | 0.0917 |
| 400 | 26/3.85 | 7/3.02 | 24.4 | 303 | 49.3 | 352 | 1161.1 | 107.58 | 0.0916 |
| 400 | 45/3.34 | 7/2.22 | 26.7 | 393 | 27.2 | 420 | 1265.3 | 97.5 | 0.0722 |
| 450 | 54/3.02 | 7/3.02 | 27.2 | 387 | 50.2 | 438 | 1402.9 | 124.20 | 0.0723 |
| 450 | 45/3.54 | 7/2.36 | 28.3 | 442 | 30.6 | 473 | 1423.4 | 107.48 | 0.0642 |
| 500 | 54/3.21 | 7/3.21 | 28.9 | 436 | 56.6 | 492 | 1578.2 | 139.72 | 0.0642 |
| 500 | 45/3.73 | 7/2.49 | 29.8 | 492 | 34.0 | 525 | 1581.6 | 119.42 | 0.0578 |
| 500 | 54/3.38 | 7/3.38 | 30.4 | 484 | 62.8 | 547 | 1753.6 | 153.99 | 0.0578 |
Component composition
Packaging: wooden barrel
Goods: finished product + wooden barrel packaging
Certification
Manufacturing process
There are nine steps in the low-voltage power cable production process：stranding machine; extrud; cooling; diameter measurement; Bearing winch; Set meter counter; testing; Spark test; packing
Payment Method
T/T; L/C ; Western Union
