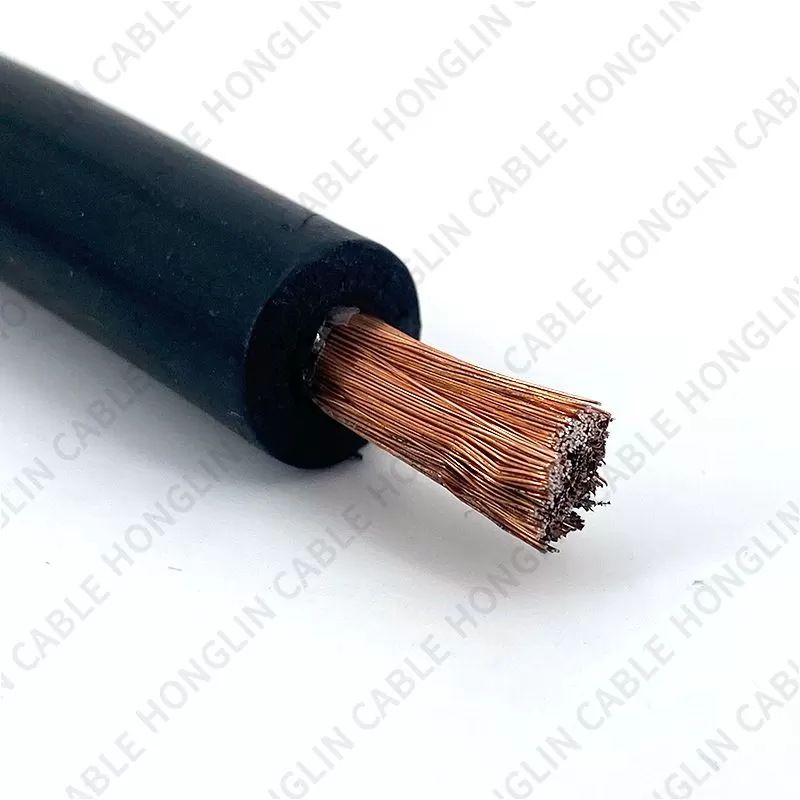

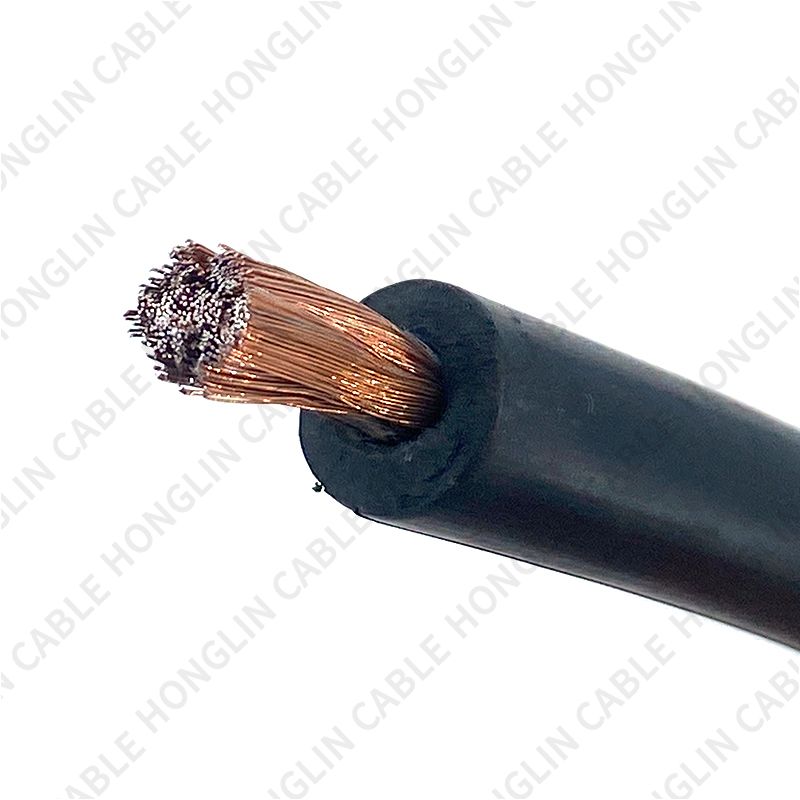

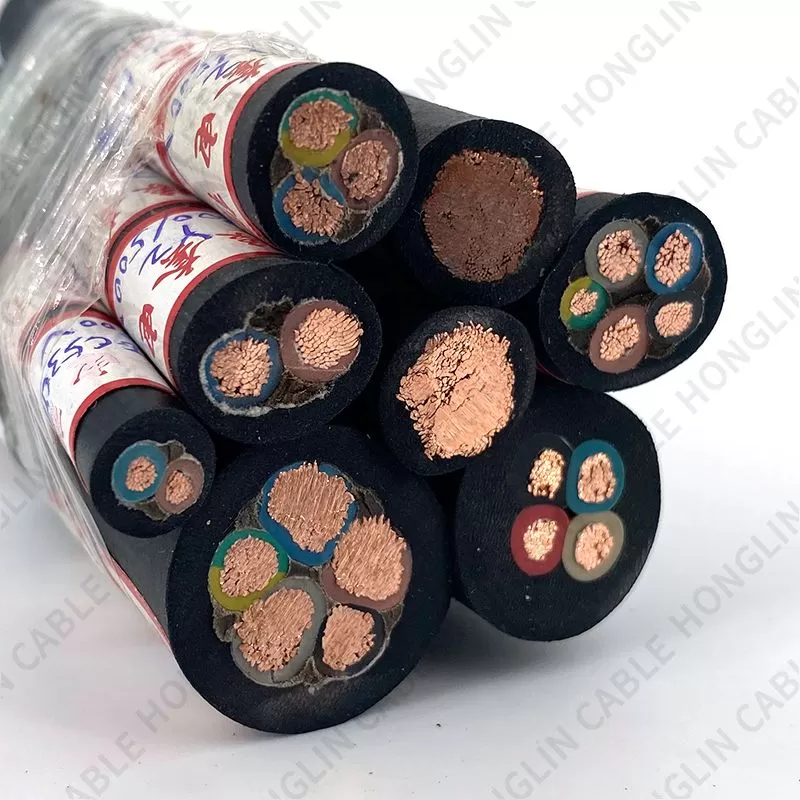

Flexible Cable Rubber Cable
Scan the QR code

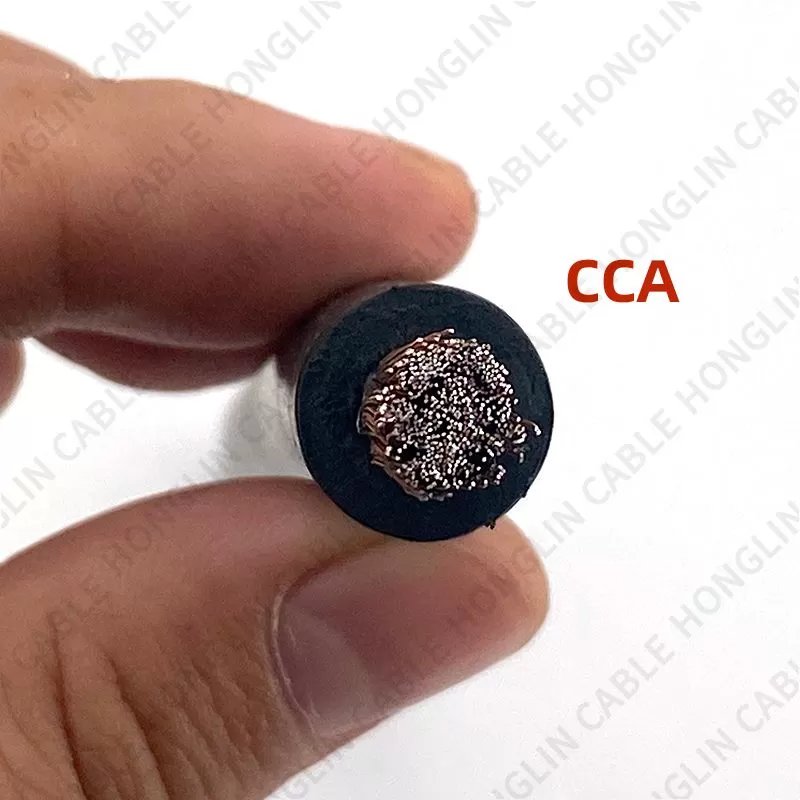

aluminum as the core and copper as the outer layer wrapped around aluminum
It has the lightness of aluminum and the good conductivity of copper
The outer insulation material of the wire is made of rubber.
Compared to pure copper cables, copper-clad aluminum rubber sheathed cables are cheaper
Rated Voltage: 300/500V 450/750V 600/1000V
CCA rubber sheathed cable is a cable product that uses copper-clad aluminum (CCA) conductors and rubber materials for insulation and sheathing. This cable has the characteristics of copper-clad aluminum conductors and rubber sheaths.
Used for power supply and lighting in homes and commercial offices
Used for equipment and machinery production in the industrial field
Suitable for power connection of power tools, equipment and machinery
Suitable for signal transmission and power connection of automation systems, machine control, industrial process control, etc.
Standards
IEC standards:
IEC 60245 is a standard for rubber sheathed cables and rubber sheathed conductors
IEC 60245-1 is about general requirements for rubber sheathed cables
IEC 60245-2 is the general requirements for rubber-sheathed conductors (single-core rubber-sheathed wires)
European standard:
EN 50525-2-21 is a standard for rubber sheathed conductors
Specification
Nominal Section-Area of Conductor(mm2) | Structure of Conductor | Nominal Thik-ness of Sheath (mm) | Overall Diameter | Max. Conductor Resistance at 20º C (Ω /km) | Approx. Weight (kg/km) | ||
Core no. /Dia. (no. /mm) | Min. | Max. | YH | YHF | |||
10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316.6 | 331.15 |
35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592.47 | 610.55 |
70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 | 817.52 |
95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066.17 | 1102.97 |
120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348.25 | 1392.55 |
150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.128 | 1648.5 | 1698.72 |
185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983.8 | 2020.74 |
Component composition

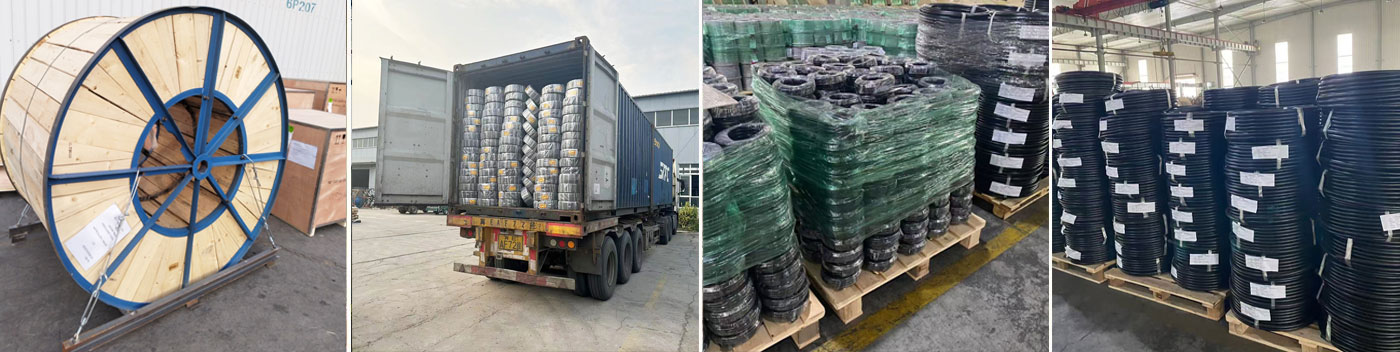

Packaging: wooden barrel
Goods: finished product + wooden barrel packaging
Certification
Manufacturing process
There are nine steps in the low-voltage power cable production process：stranding machine; extrud; cooling; diameter measurement; Bearing winch; Set meter counter; testing; Spark test; packing
