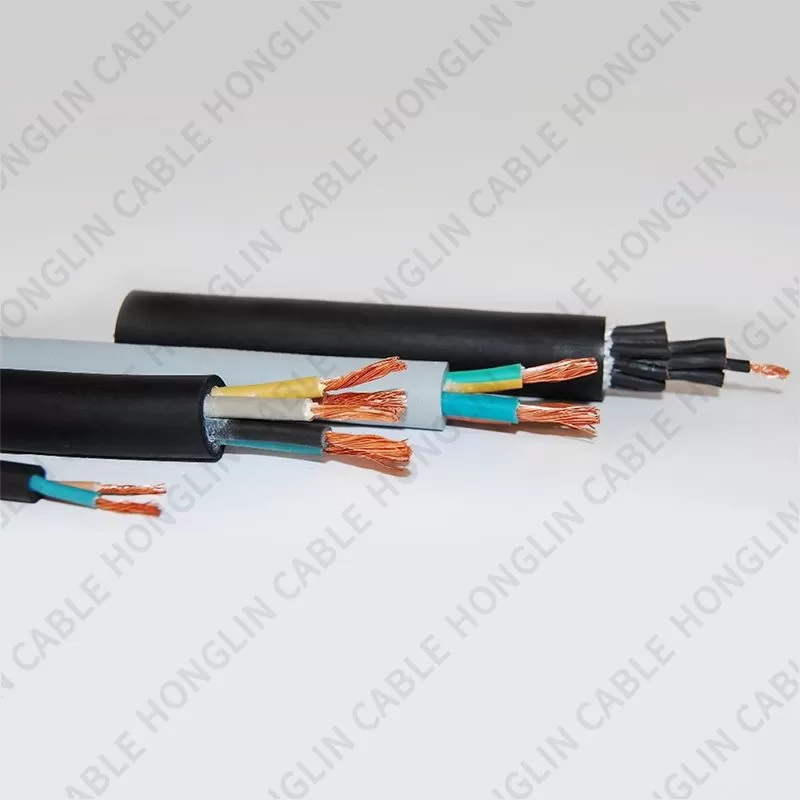

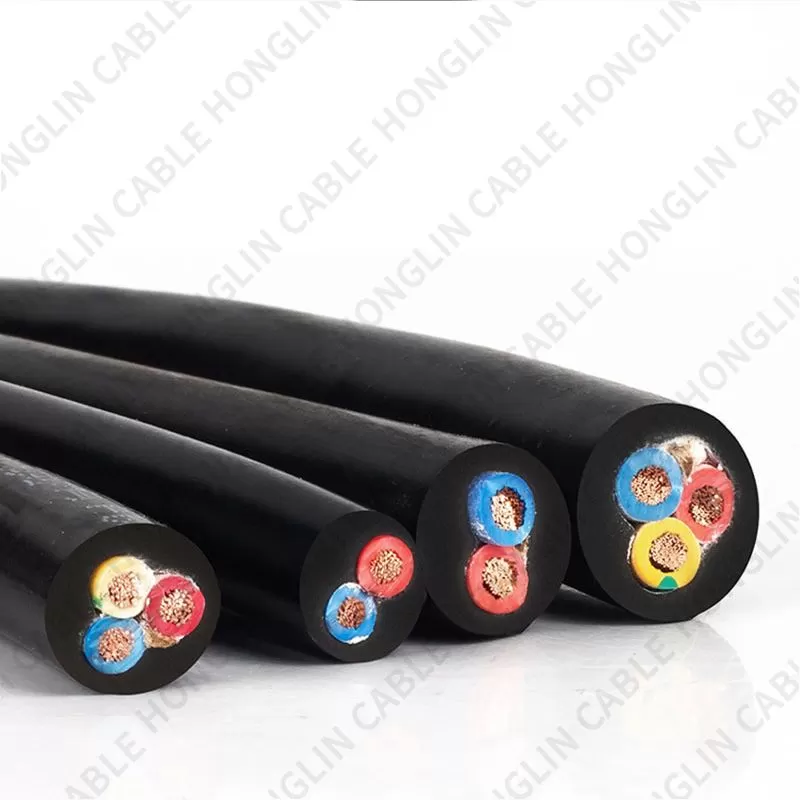

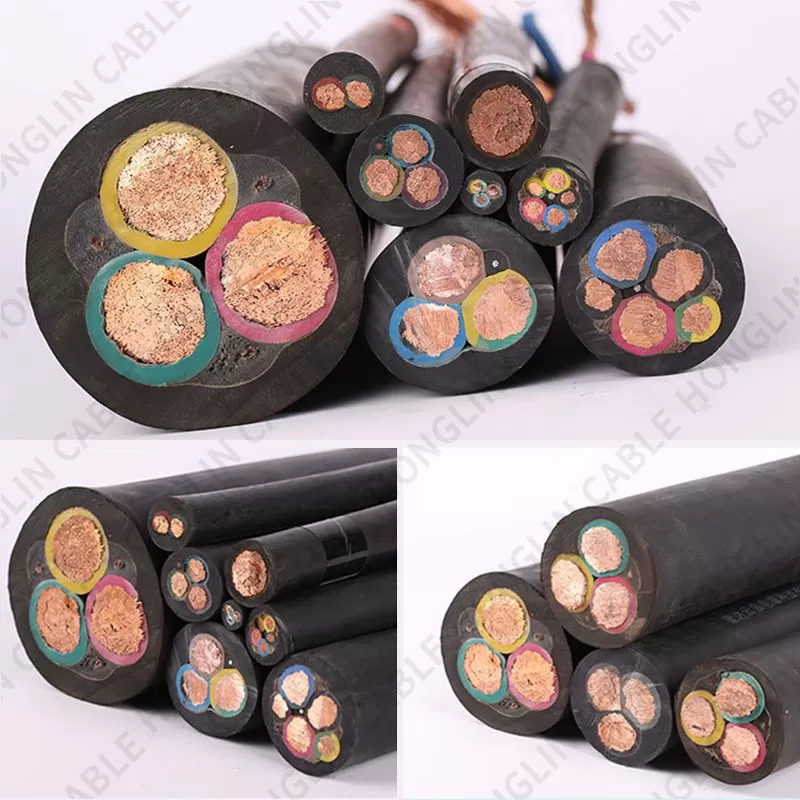

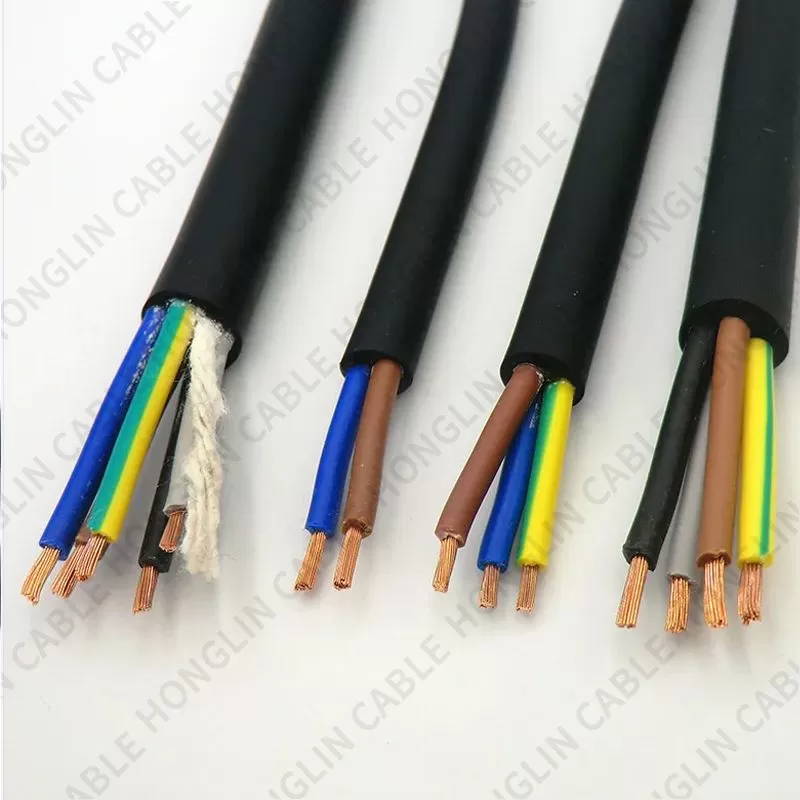

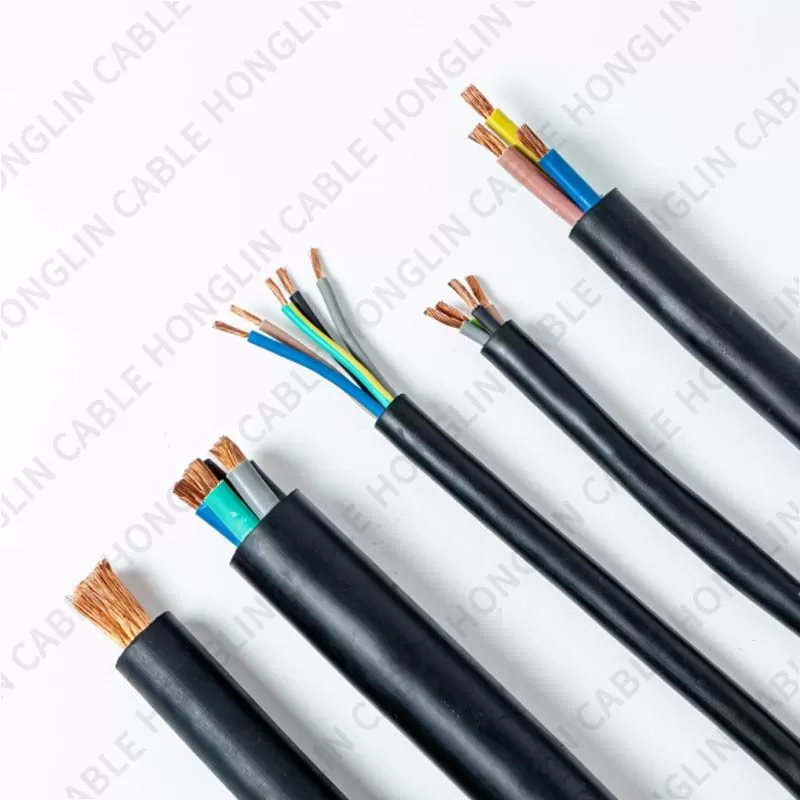

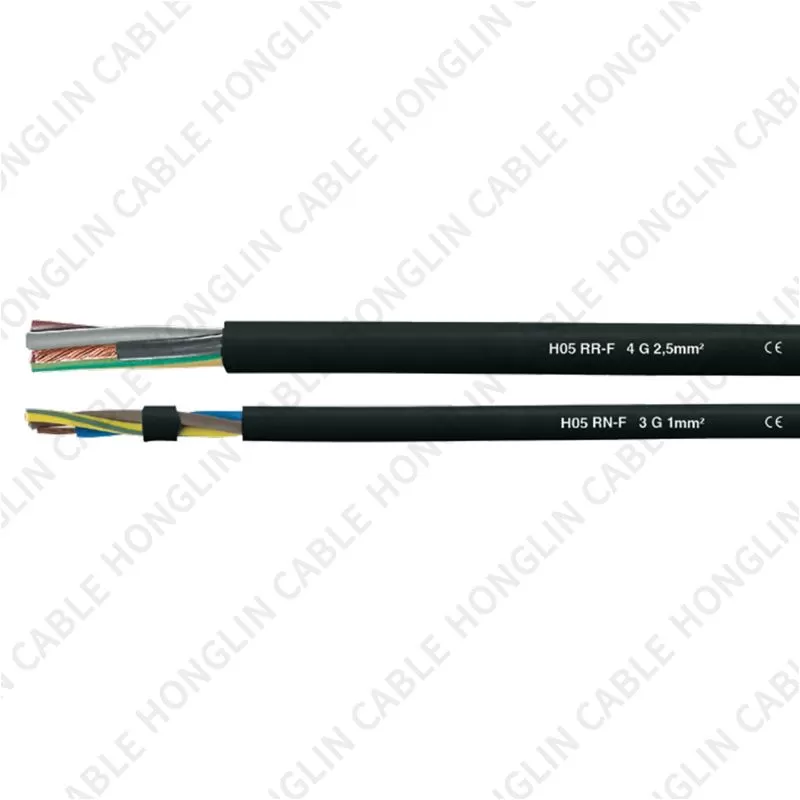

  Rubber sheathed wire is a common type of wire, also known as rubber sheathed wire or rubber cable. It has a rubber outer sheath to provide mechanical protection and insulating properties for the wire.

Rubber sleeve wire usually consists of the following main components:  1.Conductor: A conductor is the part of a wire that carries electrical current. Common conductor materials include copper and aluminum, which have good conductivity and electrical properties.  2.Insulation: Insulation is a material wrapped around a conductor to provide electrical insulation protection and prevent current leakage or interference. Some rubber sheathed wires may have an insulating layer. Common insulating materials include plastic, rubber, etc.  3.Outer Sheath: The characteristic of rubber sheathed wire is that it has a rubber outer sheath to provide additional mechanical protection and protection. The rubber outer sheath has good flexibility and wear resistance, and can withstand a certain degree of physical damage and environmental impact.

Type	Name	Main Use
YQ YQW	Lightweight rubber set soft cable	For light mobile electrical equipment and tools
YZ YZW	Medium-sized rubber set soft cable	For a variety of mobile electrical equipment and tools
YC YCW	Heavy rubber set soft cable	It can be used for heavy duty mobile electrical equipment

Type	Rated Voltage	Core Number	Nominal Cross-section
YQ YQW	300/500	2 , 3	0.3-0.5
YZ YZW	300/500	2 , 3 , 4 , 5	0.75-6
YC YCW	450/750	1 , 2 , 3 , 4 , 5	1.5-400

Main Core	Long term continuous negative load flow (A)
	YZ YZW			YC YCW
	Two Core	Three Core	Four Core	A Core	Two Core	Three Core	Four Core
0.8	14	12	11
1	17	14	13
1.5	21	18	18
2	26	22	22
2.5	30	25	25	37	30	26	27
4	41	35	35	47	39	34	34
6	53	45	45	52	51	44	44
10				75	74	63	93
16				112	96	84	84
25				148	135	115	116
35				488	167	142	143
50				226	208	176	177

Parameter	Rubber Material	CPE Material
Fire resistance and flame retardance	/	Fire resistance: in line with national standard GB/T19666-2019 Flame retardancy: in line with national standard GB/T19666-2019
Vertical riser grade	Suitable for multi-layer vertical installation	Suitable for multi-layer vertical installation
Insulation and sheathing	Insulation: EPDM ethylene propylene rubber mixture or its equivalent material insulation Sheath: rubber compound sheath	Insulation: EPDM ethylene propylene rubber mixture or its equivalent material insulation Sheath: CPE
Temperature level	60℃	60℃
Voltage and load current	Voltage: 450/750V Line core load current: 20A	Voltage: 450/750V Current capacity: 28A
Standards compliant	CCC	CCC
Flexibility and bending radius	The bending radius of the rubber sheathed cable should be no less than 6-8 times the outer diameter of the cable. For occasions with harsh environments, the bending radius can be appropriately increased according to the actual situation, but should not be less than 8 times.	The bending radius of the rubber sheathed cable should be no less than 6-8 times the outer diameter of the cable. For occasions with harsh environments, the bending radius can be appropriately increased according to the actual situation, but should not be less than 8 times.
Environmental conditions	Environmental conditions: The long-term allowable operating temperature of the cable should not exceed 65°C, ambient temperature:25°C, the maximum temperature of the cable conductor during short circuit (the longest duration does not exceed 5 seconds) does not exceed 250°C. The minimum ambient operating temperature -15 ℃	It is resistant to high temperatures of 60 degrees and has good oil resistance, chemical resistance and flame retardance
Cable support and fastening	/	The impact strength of the material is designed to facilitate safe support and fastening in vertical cable trays or conduits.

  ⭐The utility model is suitable for household appliances,electric tools and all kinds of portable electrical equipment with rated voltage below 450/750V.
  ⭐Rated voltage 300/500V is YZ,450/750V is C type.
  ⭐Long term allowable working temperature of wire core should not exceed 60.
  ⭐"W" type cable has a certain weather resistance and oil resistance,suitable for outdoor contact with oil pollution occasions.

Rubber sheathed wires are often used in applications that require use in harsh environmental conditions, such as outdoors, mobile equipment, industrial applications, etc. The rubber outer sheath of the rubber sheathed wire makes it have good oil resistance, solvent resistance, wear resistance and weather resistance. However, compared with other types of wires, the cost of rubber sheathed wires is higher because the manufacturing and processing of the rubber material itself is relatively complex.

00:0000:45

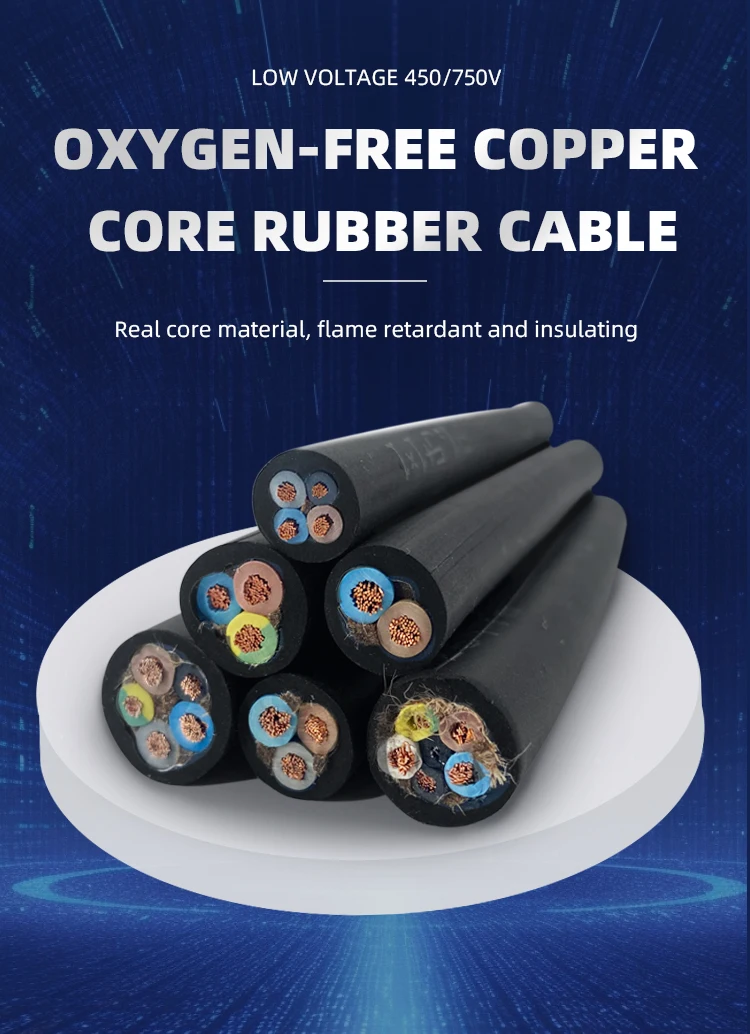

Flexible Power Electric Rubber Cable

Q1: Are you a factory or trading company?A1: We are a manufacturer.Q2: What payment method do you accept?A2: T/T(Bank transfer), L/C, Western Union, Money Gram, Paypal, etc.03: Can you make the Customized Products ?A3: Yes, we can do it according to your requests.Q4: May l buy samples from you?A4: Of course you can get samples from me, but you don't need to pay for the samples, you only need to pay for the shipping cost.05:How can l get a sample?A5: You can add my contact information, contact me online, tell me your requirements and pay the shipping cost of the samples (samples are free)and then l will mail the samples you requested to you as soon as possible.Q6: How long does shipping take?A6: For samples: 1-7 days;For formal orders: 10-18 days.
