Flexibility unmatched by other wires and cables
Good electrical insulation properties and chemical stability
Better physical and mechanical properties and wear resistance;
Oil resistance, flame retardant, cold resistance, heat resistance and other requirements
Introduction

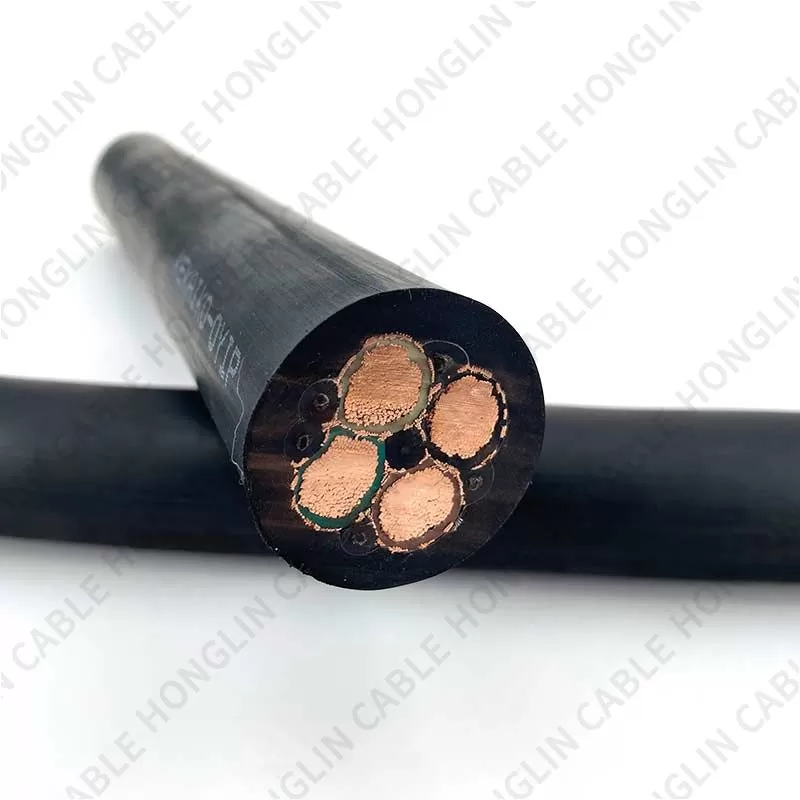

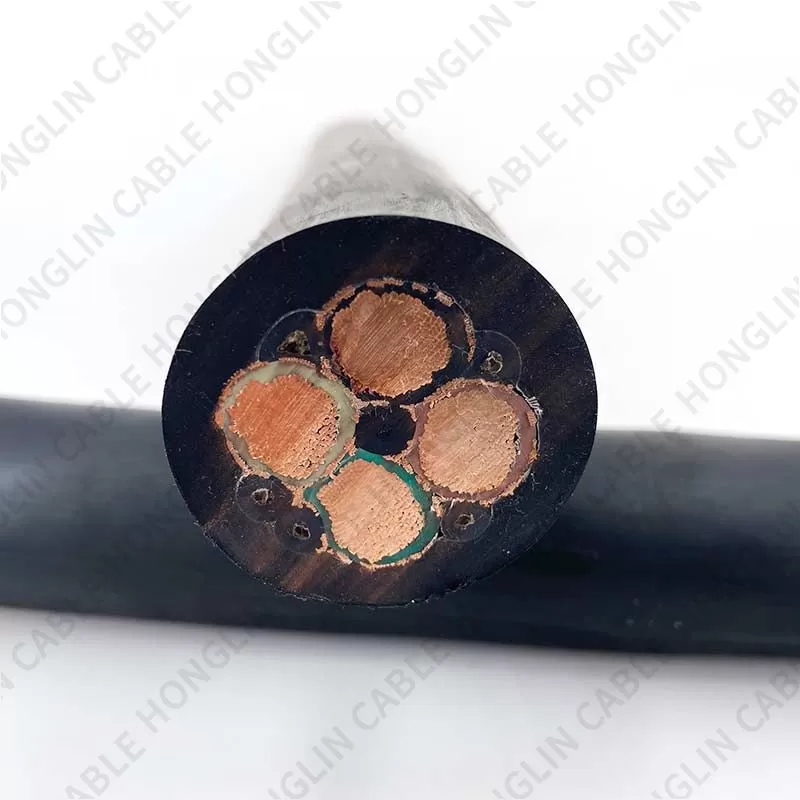

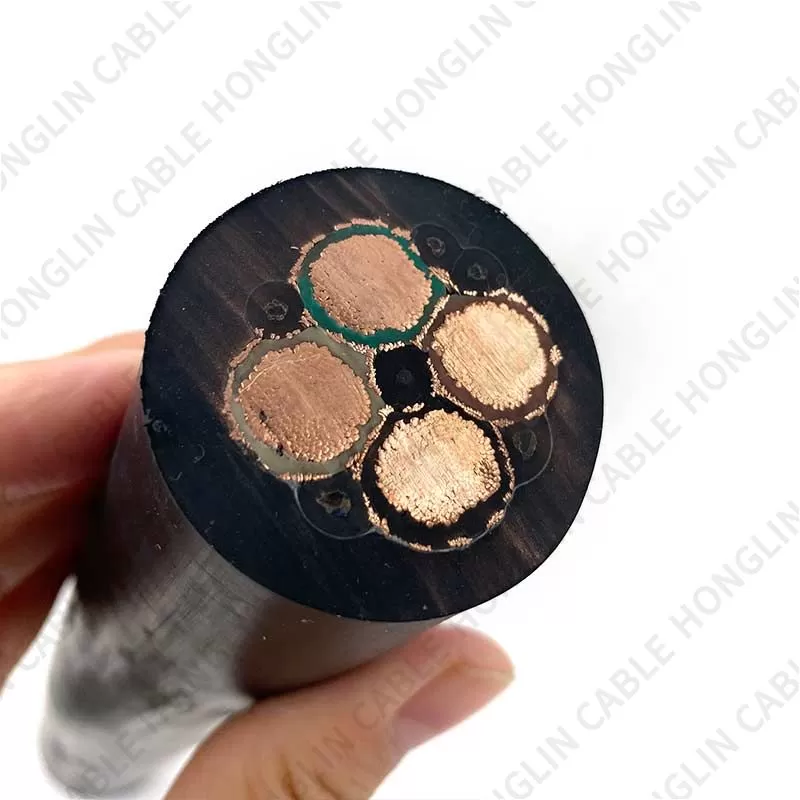

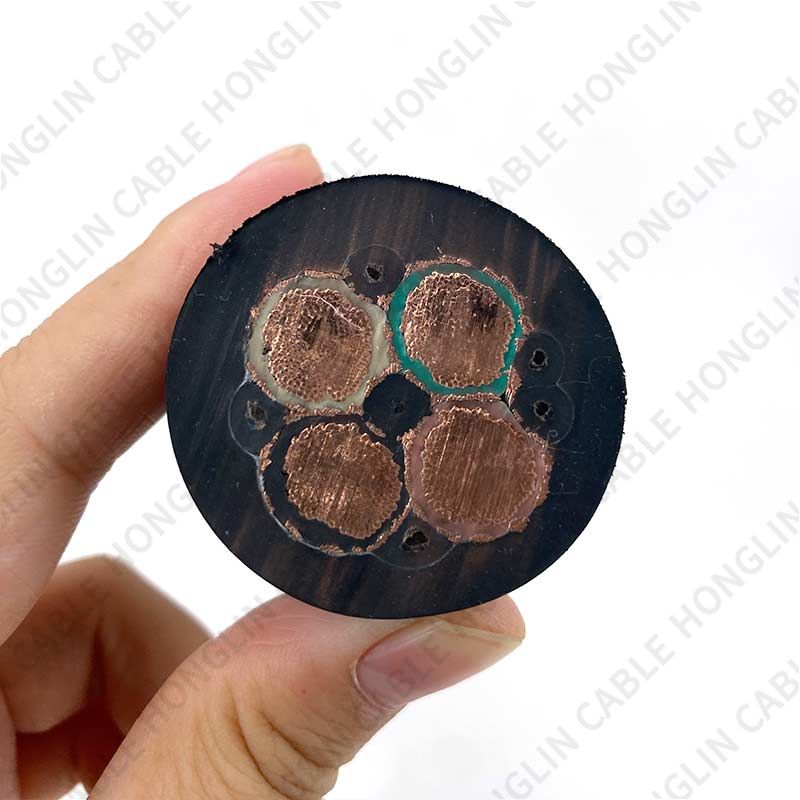

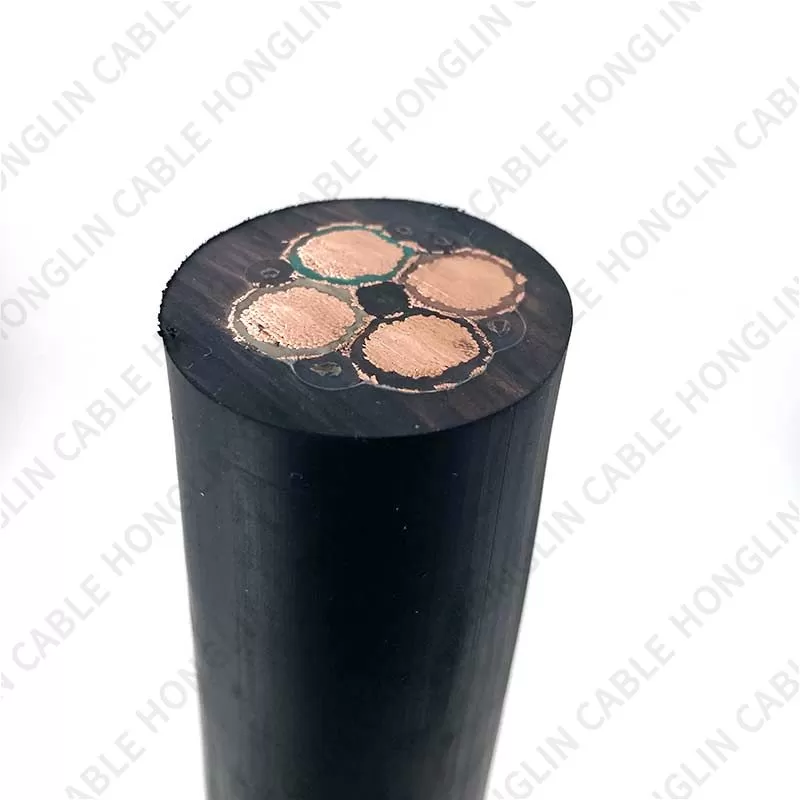

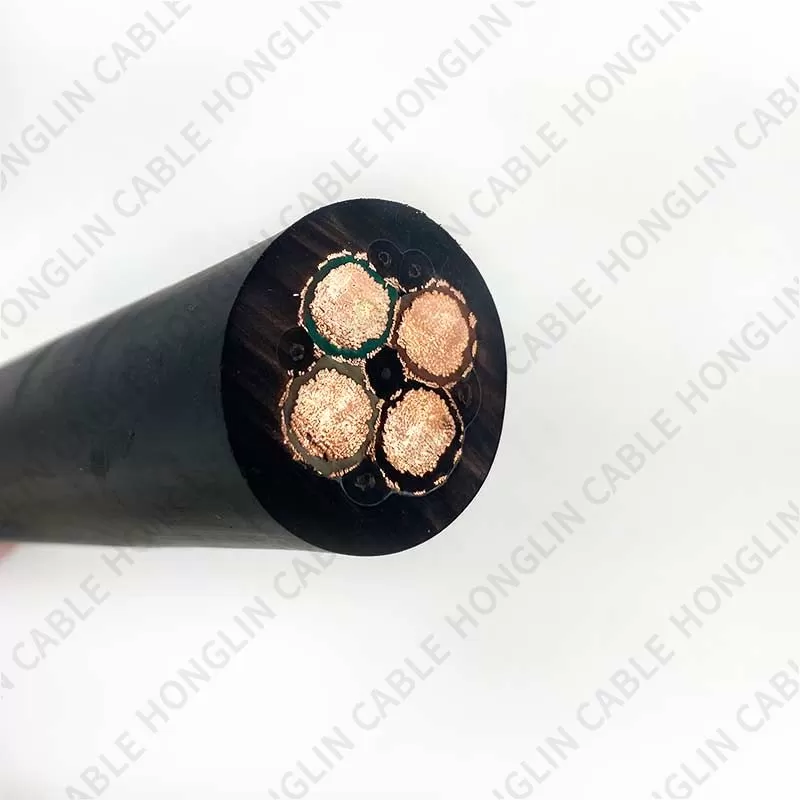

Rubber sheathed cable is a soft and movable cable type made of multi-stranded thin copper wires as conductors, covered with rubber insulation and rubber sheath.
Generally speaking, it includes general rubber-sheathed flexible cables, welding machine cables, submersible motor cables, radio device cables and photography light source cables, etc. According to the mechanical external force on the cable, the product structure is divided into three categories: light, medium and heavy.
Application
Rubber sheathed cables are widely used in various electrical equipment, such as household appliances, electric machinery, electrical equipment and mobile power cords for appliances.
General lightweight rubber-sheathed cables: used in household appliances and small electric equipment, requiring softness, lightness, and good bending performance;
In addition to industrial use, medium-sized rubber sheathed cables are widely used in agricultural electrification;
Heavy-duty cables are used in applications such as port machinery, searchlights, and large-scale hydraulic drainage and irrigation stations. This type of product has good versatility, complete series specifications, good and stable performance.
Also for use in drainage and water treatment, cold environments and severe industrial environments.
Standards
BS EN 50525-2-21, BS EN 60228,H07RN-F
Flame Retardant:according to BS EN/IEC 60332-1-2
Fire resistance: according to standard VDE 0482-332-1-2, DIN EN 60332-1-2/IEC 60332-1
Oil resistance: according to standard DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404
Specification
| Conductor | Class 5 flexible copper conductor |
| Insulation | Rubber (EPR) |
| Sheath | Rubber (CR) |
| Voltage Rating | 450/750V |
| Temperature Rating | -25°C to +60°C |
| Core identification color | VDE 0293 (hd308) |
| Sheath Colour | Black |
Component composition
Packaging: wooden barrel
Goods: finished product + wooden barrel packaging
Certification
Manufacturing process
There are nine steps in the low-voltage power cable production process：stranding machine; extrud; cooling; diameter measurement; Bearing winch; Set meter counter; testing; Spark test; packing
