Low Smoke Halogen-free/fire-resistant Special Cable
Scan the QR code

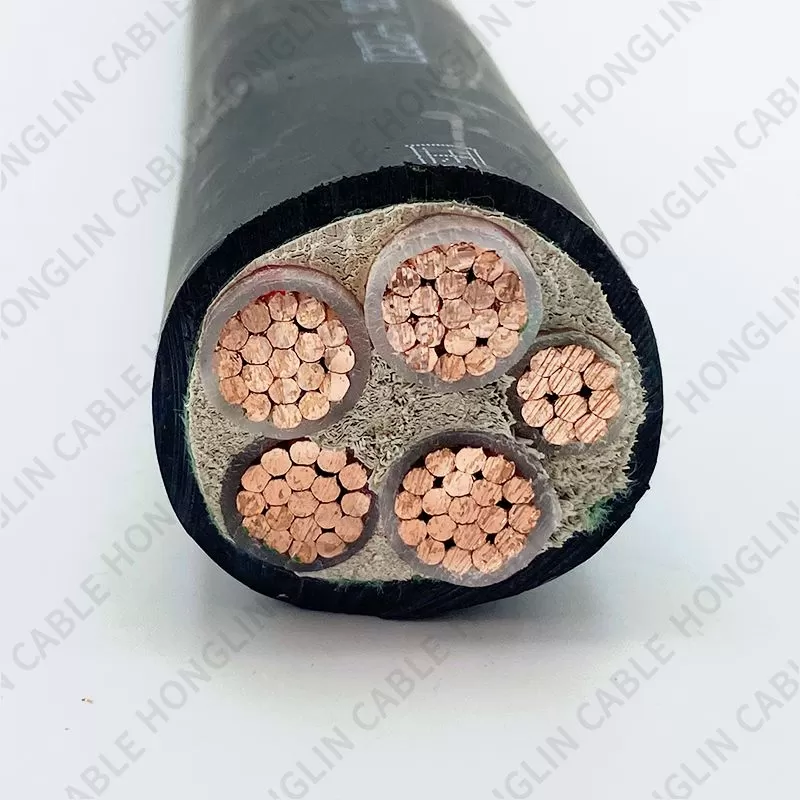

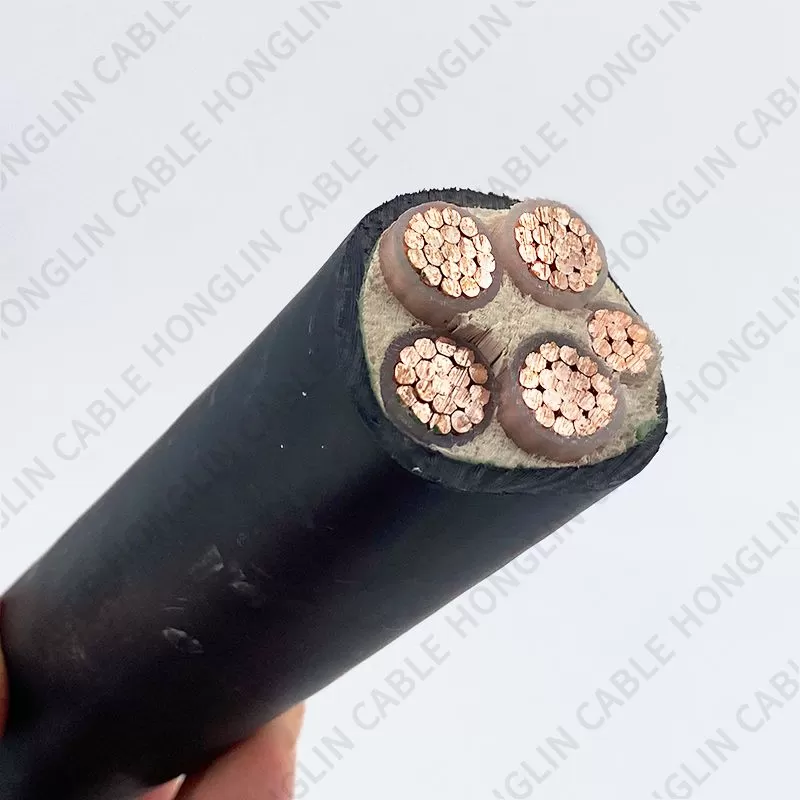

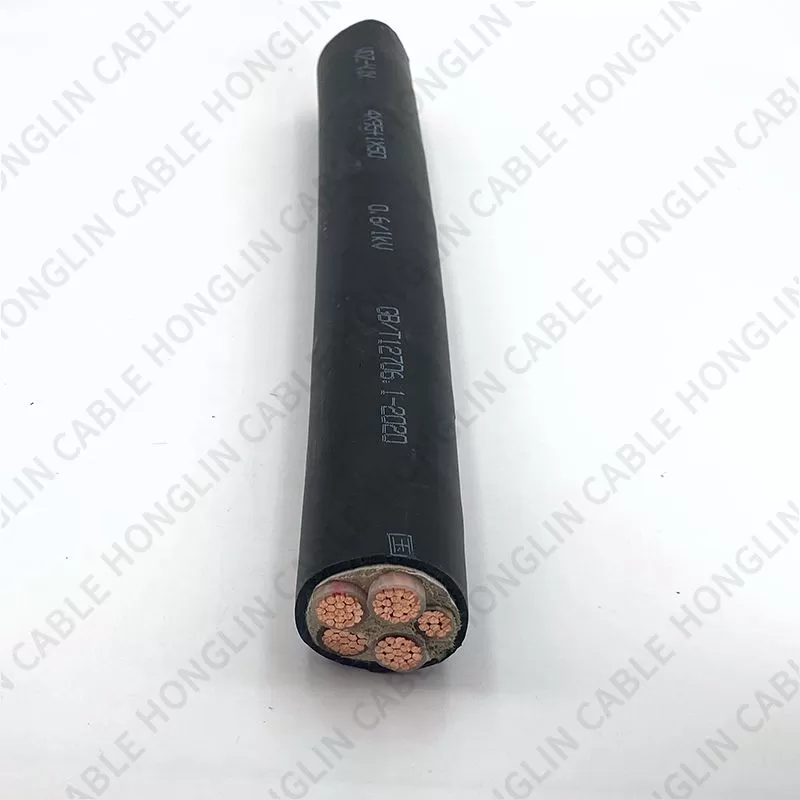

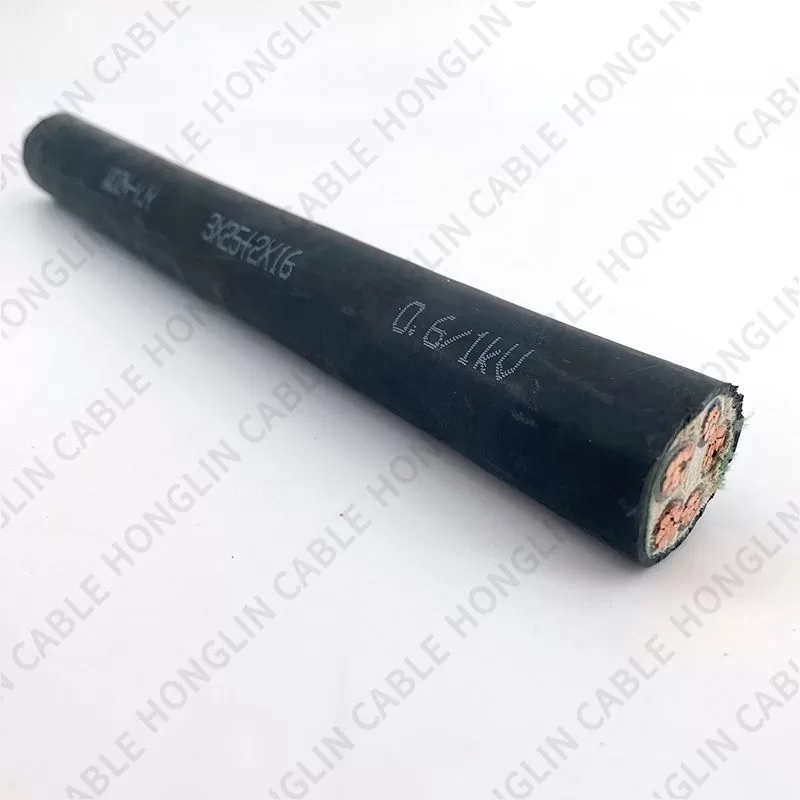

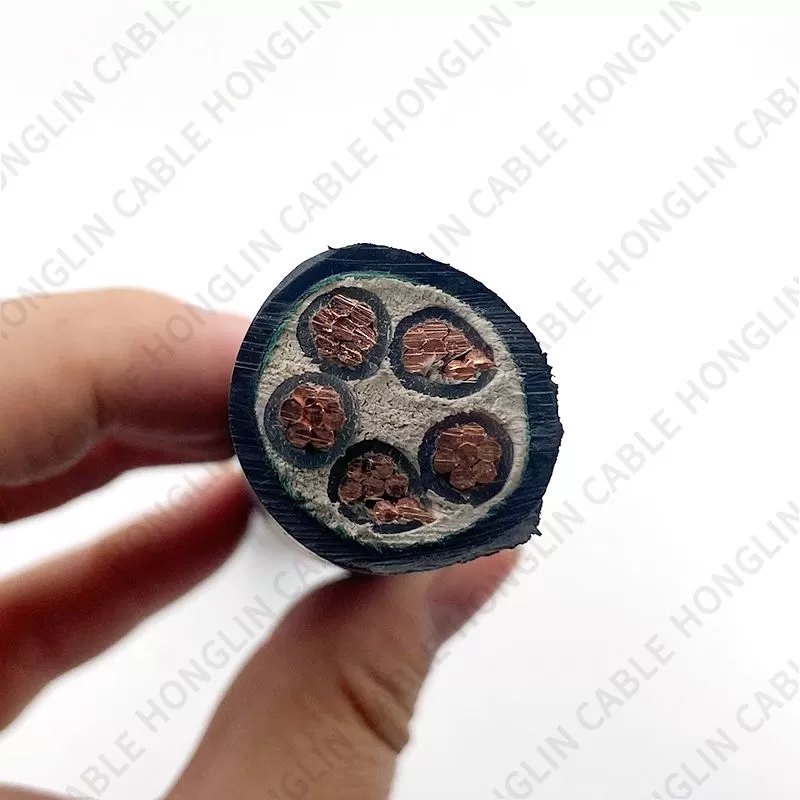

Copper core
Low smoke halogen-free refractory, Fireproof, anti-rat bites and other properties
The insulation layer and sheath layer make it have good insulation
The conductor is made of conductive materials such as copper or aluminum, which has low resistance and voltage drop, ensuring the transmission efficiency and quality of electrical energy.
Has good wear resistance, aging resistance, corrosion resistance and other properties
Good flexibility, easy to bend and install
Various connection methods, flexible and convenient wiring
The cost is relatively low, the installation and maintenance costs are also low, and it can provide a cost-effective power transmission solution
Introduction
1. Conductor:100% Pure Copper; Aluminum
2. Insulator: Polyvinyl Chloride(PVC); Cross Linked Polyethylene(XLPE)
3. Sheath Color: Black color
4. Voltage: 0.6/1KV
Application
Power cable is used for high power transmission and distribution in the power system. Commonly used in city underground power grid, power station lines, industrial and mining enterprises internal supply lines.
1. Covering less land. For laying indoors, in tunnels, in ducts and underground, do not take up floor space.
2. High reliability. small influence to surrounding environment and weather condition.
3. High distributed capacitance.
4. Less maintenance.
5. The chance of electric shock is very slim.
Specification
| Specification（mm2) | Outer Diameter (mm) | Allowed continuous load capacity(A) | Allowable continuous soil loading(A) |
| 1*1.5 | 11 | 35 | 44 |
| 1*2.5 | 11.4 | 46 | 59 |
| 1*2.5 | 22.1 | 59 | 78 |
| 1*6 | 12.7 | 75 | 96 |
| 1*10 | 13.6 | 100 | 134 |
| 1*16 | 14.7 | 130 | 137 |
| 1*25 | 16.4 | 170 | 230 |
| 1*35 | 17.6 | 210 | 279 |
Component composition
Packaging: wooden barrel
Goods: finished product + wooden barrel packaging
Certification
Manufacturing process
There are nine steps in the low-voltage power cable production process：stranding machine; extrud; cooling; diameter measurement; Bearing winch; Set meter counter; testing; Spark test; packing
