In modern power distribution networks, the selection of appropriate medium voltage cables is crucial to ensure operational efficiency and safety. Our 8.7/15kV cables are meticulously engineered to meet the rigorous demands of contemporary industrial and utility applications, providing a reliable solution for medium voltage power transmission.

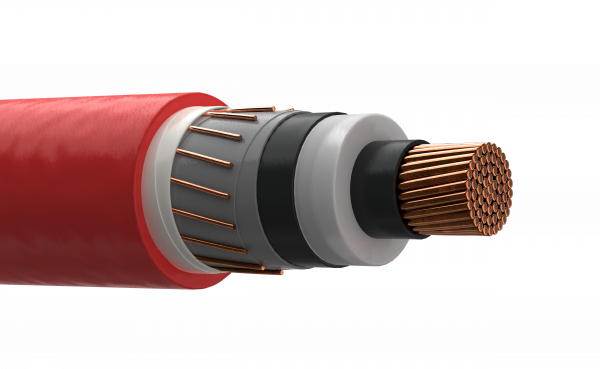

Our 8.7/15kV cables are designed with precision and adhere to international standards, ensuring both quality and compatibility. Key components include:
Conductor: Utilizing high-grade stranded copper or aluminum conductors, these cables offer excellent electrical conductivity and flexibility.
Insulation: The cables feature Cross-Linked Polyethylene (XLPE) insulation, known for its superior thermal and electrical properties, enhancing performance under varying load conditions.
Screening: A semi-conductive layer over the conductor and insulation effectively manages the electric field within the cable, ensuring operational safety and reliability.
Sheathing: The outer sheath is crafted from robust materials such as PVC or Low Smoke Zero Halogen (LSZH), providing resistance against environmental factors, chemicals, and mechanical stress.
Armoring Options: Depending on specific application requirements, the cables are available with Steel Wire Armor (SWA) or Steel Tape Armor (STA) for enhanced mechanical protection.
Our 8.7/15kV cables are versatile and suitable for a wide range of applications, including:
Power Distribution Networks: Efficiently transmitting electricity within utility grids and substations.
Industrial Installations: Supplying power to heavy machinery and equipment in manufacturing plants and processing facilities.
Underground and Submarine Installations: Designed to withstand challenging environments, making them ideal for subterranean and underwater applications.
Renewable Energy Projects: Connecting wind farms and solar power plants to the grid, facilitating the integration of sustainable energy sources.
Compliance with International Standards: Our cables are manufactured in accordance with globally recognized standards such as IEC 60502-2 and BS 7835, ensuring quality and compatibility. Eland Cables
Superior Performance: With high-quality materials and meticulous construction, our cables offer excellent electrical properties, thermal stability, and mechanical strength.
Customization Options: We provide tailored solutions to meet specific project requirements, including various conductor materials, insulation types, and armoring options.
Expert Support: Our team of experienced professionals is available to assist with product selection, technical guidance, and after-sales support, ensuring a seamless experience from inquiry to installation.
| Parameter | Specification |
|---|---|
| Rated Voltage (Uo/U) | 8.7/15kV |
| Conductor Material | Stranded Copper or Aluminum |
| Insulation | XLPE (Cross-Linked Polyethylene) |
| Conductor Screen | Semi-conductive Material |
| Insulation Screen | Semi-conductive Material |
| Armoring (Optional) | SWA (Steel Wire Armor) or STA (Steel Tape Armor) |
| Outer Sheath Material | PVC or LSZH |
| Operating Temperature Range | -20°C to +90°C |
| Short Circuit Temperature | Up to 250°C (for durations not exceeding 5 seconds) |
| Standards Compliance | IEC 60502-2, BS 7835 |
Our 8.7/15kV cables are tested and certified to comply with international standards, ensuring they meet stringent safety and performance criteria. Certifications include:
IEC 60502-2: International standard for power cables with rated voltages from 1kV to 30kV. Eland Cables
BS 7835: British Standard for armoured cables with thermosetting insulation for rated voltages of 3.8/6.6kV up to 19/33kV. Eland Cables
ISO/IEC 17025: Accreditation for testing and calibration laboratories, ensuring reliable and accurate test results. Eland Cables
Understanding that each project has unique requirements, we offer comprehensive customization options for our 8.7/15kV cables. Clients can specify conductor material (copper or aluminum), insulation type, armoring preferences, and sheath material to suit their specific needs. Our team is committed to providing tailored solutions that align with your project's technical and environmental demands.
Selecting the right medium voltage cable is crucial for the efficiency and reliability of your power distribution system. Our 8.7/15kV cables are designed and manufactured to meet the highest standards, ensuring superior performance across various applications. With customization options, adherence to international standards, and dedicated support, we are your trusted partner in power transmission solutions.
Call to Action: For more information or to discuss your specific requirements, please contact our sales team. We are ready to assist you in selecting the optimal 8.7/15kV cable solution for your application.
