Nov. 06, 2024
In today's electrical systems, low voltage cables are essential for powering a wide range of applications. Whether you are wiring a residential property or handling more complex industrial setups, understanding the various types of low voltage cables and their uses is key to making informed decisions. This guide will dive into the different kinds of low voltage cables, including their specifications, uses, and benefits, focusing on popular variants such as the 2 core low voltage cable, 3 core low voltage cable, and 600v low voltage cable.
Low voltage cables are used in systems that operate at voltages typically below 1,000 volts. These cables are designed to power equipment and devices where higher voltage is not necessary or desired. Low voltage wiring ensures safety while delivering sufficient power for a wide range of applications, including lighting, signal transmission, and control systems.
There are various configurations of low voltage cables, each with specific features and advantages. Some of the most common types include:
2 Core Low Voltage Cable: This is one of the most commonly used cables for light residential applications. It is suitable for low-power lighting circuits and small devices.
2 core low voltage cable is available in different sizes, such as 12 2 low voltage cable and 16 2 low voltage cable, offering varying levels of current capacity depending on your needs.
3 Core Low Voltage Cable: For applications that require additional wiring, 3 core low voltage cable is a versatile option, allowing for the addition of a neutral wire, often used in heavier-duty residential and commercial installations.
This type of cable is perfect for outdoor power connections, and 2 core low voltage outdoor cable is designed to withstand the elements.

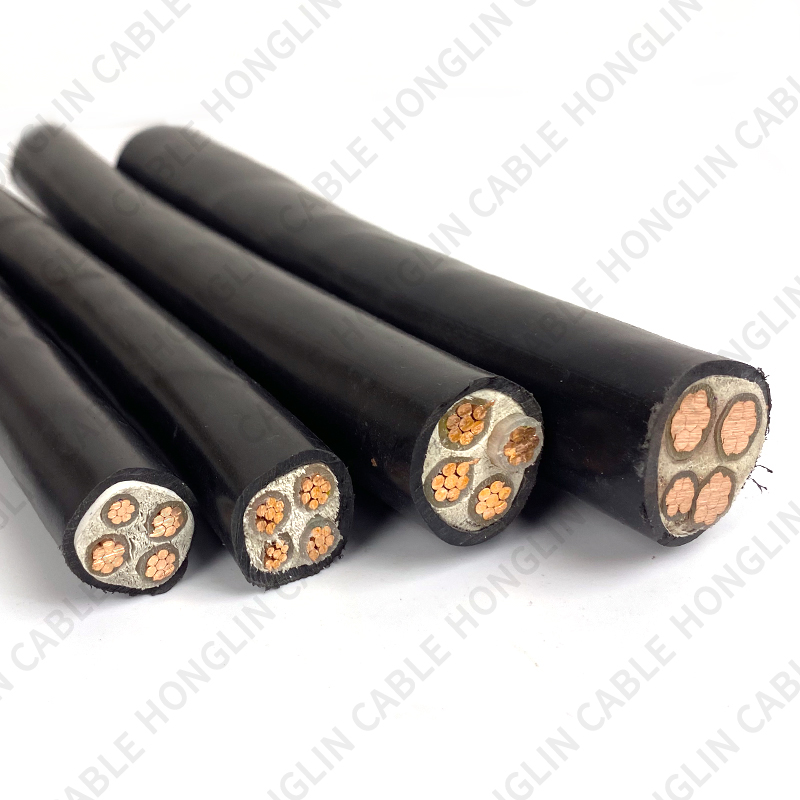

4 Core Low Voltage Cable: Sometimes, applications demand multiple conductors for control and power. A 4 core low voltage cable is commonly used in industrial applications, offering more versatility for complex circuits.
Low Voltage Electrical Cable: This broad term encompasses all types of low voltage cables used for various electrical systems, including those mentioned above, as well as 12v low voltage cables for very specific, low-power applications.
Low Voltage Cable Wire: In some cases, low voltage cable wire is used to connect smaller devices or as part of a larger circuit. This wire is ideal for custom electrical setups or for integrating low voltage systems into larger structures.
Choosing the right low voltage electrical cable depends on several factors, including the voltage requirement, environmental conditions, and the number of conductors needed. Let’s explore some common sizes and specifications:
12 2 Low Voltage Cable: Ideal for general residential wiring, including lighting circuits and other small devices.
16 2 Low Voltage Cable: Suitable for applications that require a bit more power, typically used in lighting systems or small appliances.
18 2 Low Voltage Cable: Often used for very low-power circuits like signal transmission or low-power lighting setups.
The 600v low voltage cable is commonly used in industrial applications. It is designed to handle up to 600 volts, making it suitable for higher-power systems. These cables can come in a variety of configurations, such as 2 core low voltage cable or 3 core low voltage cable, depending on the application.
Low voltage cables are essential for providing power safely and efficiently to systems that do not require high voltage. Some benefits include:
Safety: Lower voltage systems are safer to install and maintain, reducing the risk of electrical shock.
Cost-effective: Low voltage cables are generally more affordable than high-voltage counterparts, making them ideal for residential, commercial, and industrial use.
Flexibility: These cables come in various configurations, such as 2 wire low voltage cable, 3 wire low voltage cable, and 4 wire low voltage cable, offering flexibility for different installation needs.
Lighting Systems: Low voltage cables are commonly used in lighting circuits, especially in recessed lighting, security lighting, and landscape lighting.
For example, 12 2 low voltage cable and 16 2 low voltage cable are both ideal for such applications.
Security and Surveillance: Many low voltage cables, including 2 core low voltage cable and 3 core low voltage cable, are used in security systems, such as alarm systems, CCTV, and home automation.
Outdoor and Garden: When wiring outdoor spaces, 2 core low voltage outdoor cable is often used due to its durability and resistance to weather conditions.
HVAC Systems: Many heating, ventilation, and air conditioning (HVAC) systems rely on low voltage electrical cables to power thermostats, controllers, and other components.
When choosing low voltage cables, it is important to consider the following key specifications:
Voltage Rating: Different cables are designed to carry different amounts of voltage. For example, 600v low voltage cable is rated to carry up to 600 volts, while other cables might be rated for 12 volts, such as the 12v low voltage cable.
Core Count: The number of cores in the cable dictates its versatility. 2 core low voltage cable and 3 core low voltage cable are common, but cables with more cores, like the 4 core low voltage cable, are also available.
Insulation: The insulation material protects the wire from environmental factors, such as water, chemicals, and temperature changes. Some cables, like 2 core low voltage outdoor cable, are specifically designed for use in harsh conditions.
Understanding the differences between various low voltage cables is essential for selecting the right one for your specific needs. Whether you require a simple 2 wire low voltage cable for a basic lighting system or a more robust 3 core low voltage cable for outdoor or industrial applications, there is a cable type to suit every situation. Remember to consider the voltage rating, the number of cores, and the intended use when choosing your low voltage cables.
By selecting the right cable, you ensure safety, durability, and reliability in your electrical systems.
