Nov. 08, 2024
Submersible pump cables are an essential component in ensuring the safe and reliable operation of submersible pumps. These cables are designed to withstand the harsh underwater conditions, providing consistent power to submersible pumps used in a variety of applications, including water pumping, irrigation, and industrial use. Whether you are installing a submersible well pump cable for a residential water system or a 3-phase submersible pump cable for industrial operations, choosing the right cable is crucial for performance and safety.
The performance of your submersible pump largely depends on the quality and specifications of the cable you use. Incorrectly sized cables, poor insulation, or low-quality materials can result in pump failure, costly repairs, and even safety hazards. It is essential to select cables based on the pump’s power requirements and environmental conditions.
Submersible pump cables come in various types and specifications, each designed for specific applications. The most common types include:

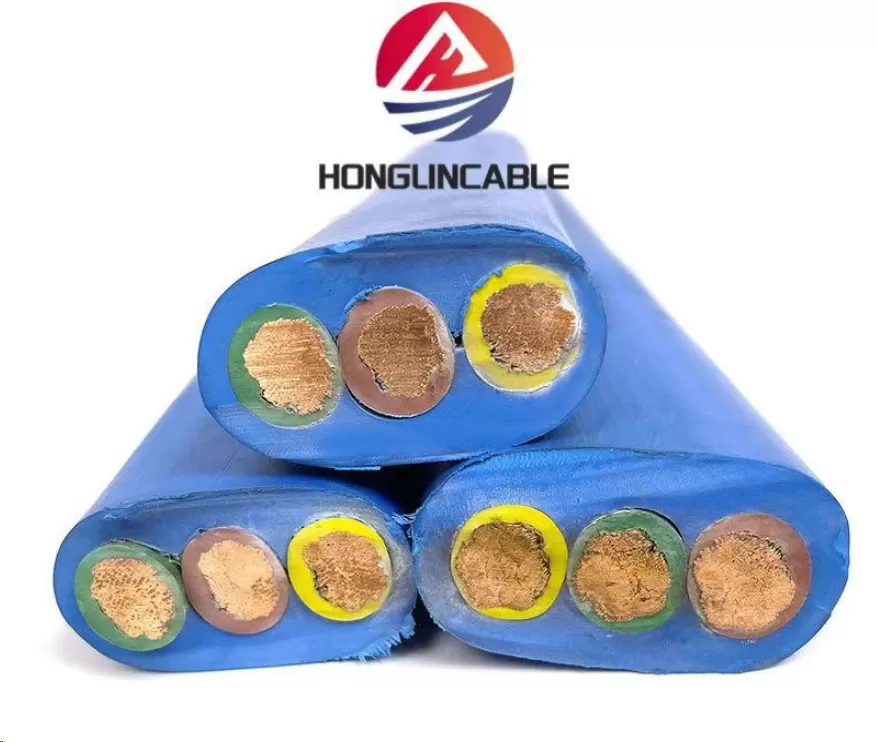

Flat Submersible Pump Cable
One of the most popular types for submersible pumps is the flat submersible pump cable. This type is known for its space-saving design and flexibility, making it ideal for applications where the cable needs to be laid flat on the surface. It is often used in wells and boreholes, where space is limited.
Flat Jacketed Submersible Pump Cable
The flat jacketed submersible pump cable is designed with an extra layer of protective material to shield the cable from external damage. This type of cable is ideal for installations where the cable will be exposed to environmental factors, including water, chemicals, or mechanical stress.
Twisted Submersible Pump Cable
Twisted submersible pump cables feature twisted conductors that help to prevent the cable from tangling or knotting, ensuring smooth and efficient operation. These cables are suitable for deep-well applications where flexibility and resistance to mechanical wear are required.
3 Core Cable for Submersible Pump
A 3-core cable for submersible pump is often used for systems that require three-phase power, making it suitable for high-power applications. These cables can handle larger current loads, making them ideal for industrial use and large water pumping systems.
Submersible Water Pump Cable
Submersible water pump cables are designed to handle the high power demands of water pumps while being resistant to water, oils, and chemicals. These cables are essential for ensuring the safe operation of water pumps in deep wells or other submersible systems.
When choosing a submersible pump cable, several key specifications should be considered to ensure compatibility with your pump system and environment:
Cable Size
The size of the cable determines its current-carrying capacity. Common sizes include 12 AWG submersible pump cable, 10 AWG submersible pump cable, and 2.5 sq mm cable for submersible pump. The correct cable size ensures that the cable can handle the electrical load without overheating, which is critical for the safe and efficient operation of the pump.
Voltage Rating
Submersible pump cables typically have voltage ratings ranging from 600V to 1000V. For example, 600V low voltage cables are commonly used for residential applications, while industrial setups might require cables rated for higher voltages.
Material and Insulation
The insulation material protects the cable from water, chemicals, and other environmental factors. Most submersible pump cables are made with a combination of rubber and PVC coatings to provide excellent protection against wear and tear. For higher durability, cables may be armored or shielded.
Length and Configuration
Cables come in various lengths, such as the 100 ft low voltage cable for small residential setups, or custom lengths for larger industrial operations. Additionally, cables can come in 4-wire submersible pump cables or 3-phase submersible pump cables, depending on the system requirements.
The price of submersible pump cables can vary depending on the type, size, and material. Typically, the price is determined by the gauge of the wire, the length of the cable, and the additional features such as flat jacketed submersible pump cables or submersible water pump cables.
For example, the submersible pump cable price per meter can range from $0.50 to $5 per meter, depending on the type of cable and its specifications.
1.5 HP submersible pump cable price can vary from $10 to $30, depending on the cable's power handling capacity and length.
For larger, industrial applications, such as a 3-phase submersible pump cable, the price can go up to $100 per meter for high-quality, durable cables.
When choosing a cable, consider the following factors:
Power Requirements
The power requirement of your pump is one of the most important factors to consider. For example, a 1 HP submersible pump cable will have different power handling requirements than a 3-phase submersible pump cable. Ensure that the cable you choose matches the pump’s power specifications.
Cable Type
Depending on the application, you may need a specific cable type. For residential use, submersible pump cables 12-2 or 6-3 submersible pump cables are ideal. For more industrial purposes, submersible well pump cable or 4 wire submersible pump cable might be required.
Length and Flexibility
Choose a cable length that meets the needs of your installation. For instance, submersible well pump wire cable is often available in lengths ranging from 100 ft to 1000 ft, and you’ll need to ensure that the cable is long enough to reach the pump and connect to the power source.
Environmental Conditions
Make sure to choose cables that are rated for the environmental conditions of your installation. Flat submersible pump cables are ideal for tight spaces, while armored submersible pump cables provide additional protection against mechanical damage, making them perfect for installations in harsh environments.
Submersible pump cables are used in a variety of applications, including:
Residential Water Pumps
For home irrigation systems, wells, or fountains, submersible water pump cables ensure that water is efficiently pumped without interruption.
Agricultural Applications
Farmers use low voltage cables for submersible pumps to irrigate fields and provide water to livestock.
Industrial and Commercial Use
Large industrial operations often rely on electrical submersible pump cables for cooling systems, sewage treatment plants, and other high-demand applications.
Choosing the right submersible pump cable is crucial for the reliable operation of your pump system. Whether you need a flat jacketed submersible pump cable for tight spaces or a 3-phase submersible pump cable for industrial use, selecting the correct cable ensures safety, efficiency, and longevity.
With a wide variety of options available, including 12 AWG submersible pump cables, 1 HP submersible pump cables, and submersible well pump wire cables, there is a solution for every need. Be sure to consider the power requirements, environmental conditions, and installation requirements to select the best cable for your submersible pump.
By investing in high-quality cables and ensuring proper installation and maintenance, you can enjoy years of trouble-free operation from your submersible pump system.
