Conductor：Tinned Copper
Flexible, good bending performance, certain fire resistance
Has excellent electrical insulation properties and good anti-electromagnetic interference capabilities
Has excellent electrical insulation properties
The electrical energy generated is usually direct current, and the current is relatively large

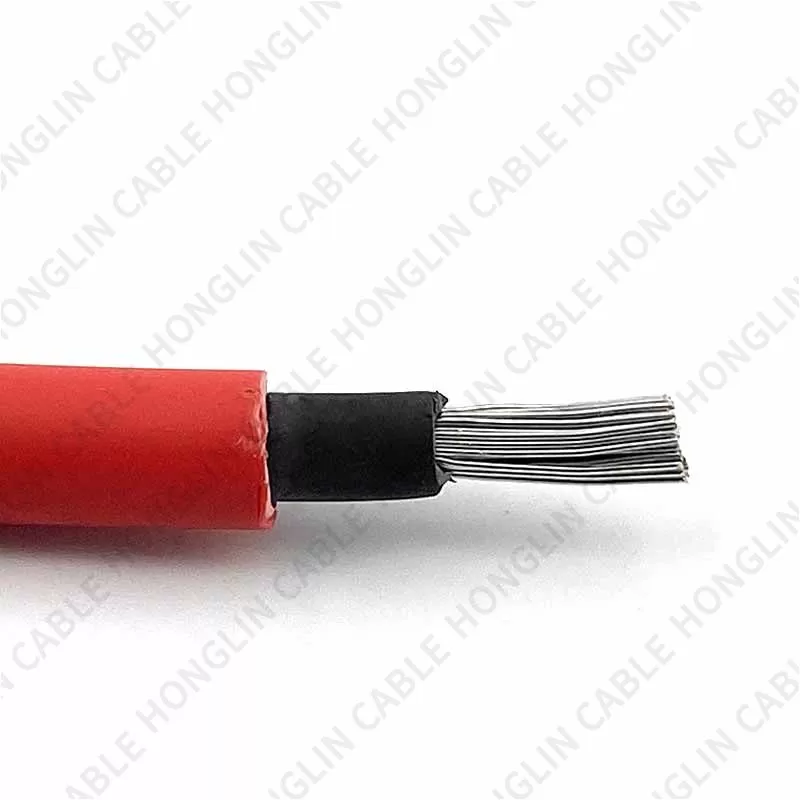

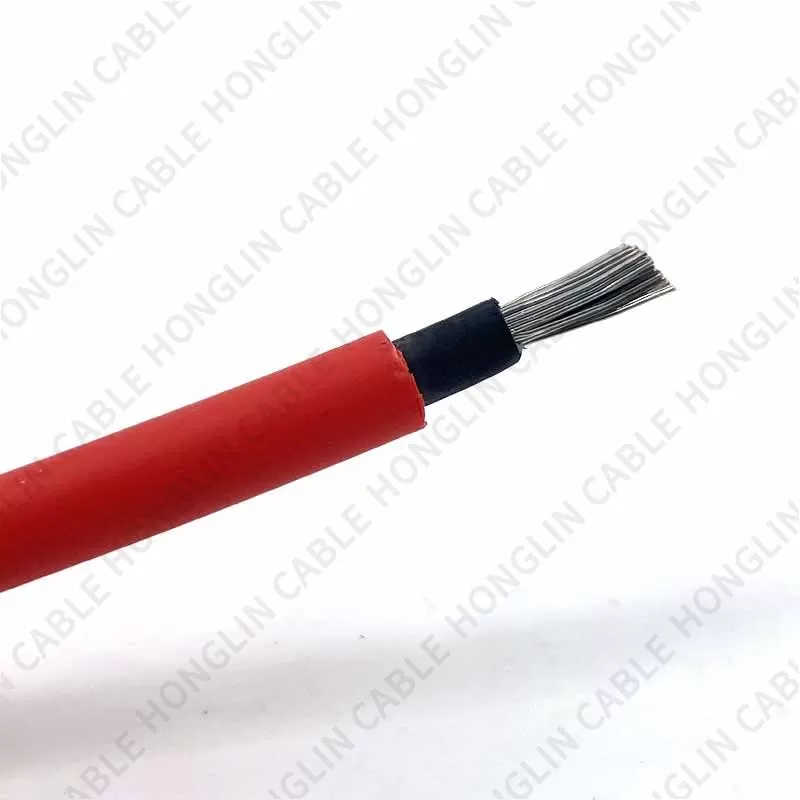

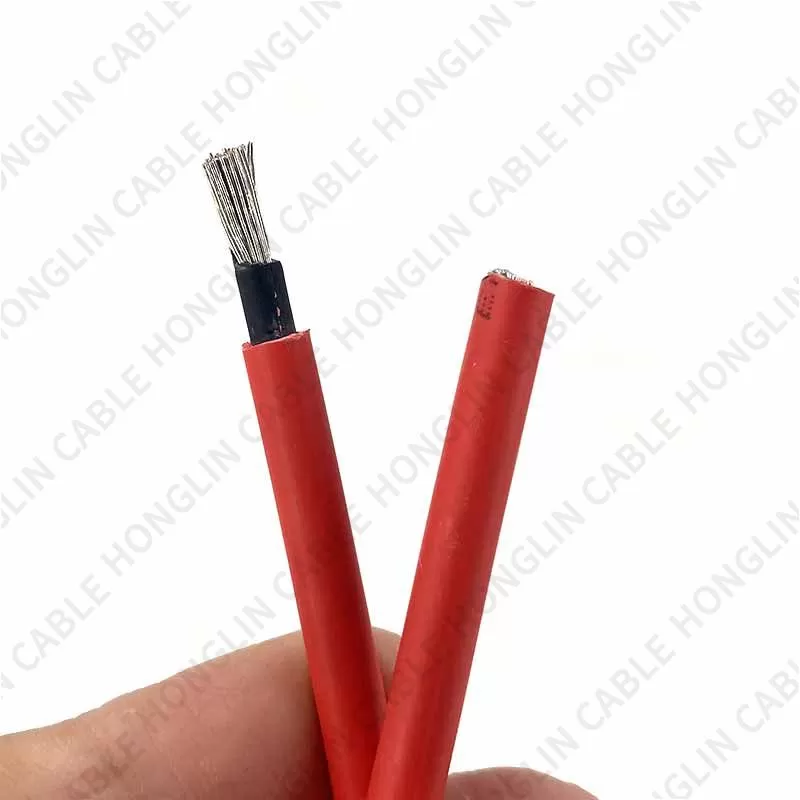

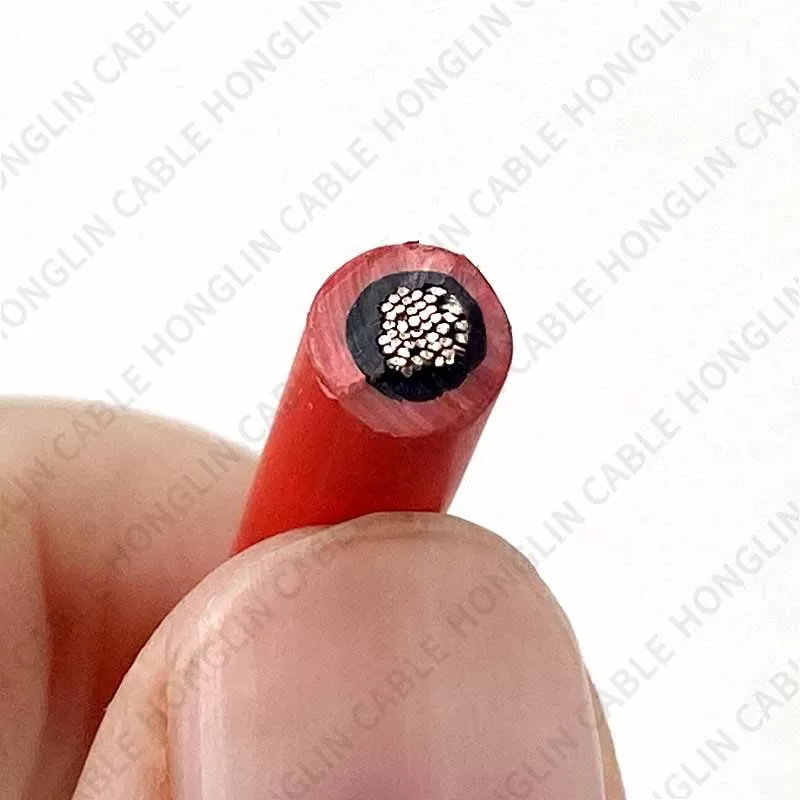

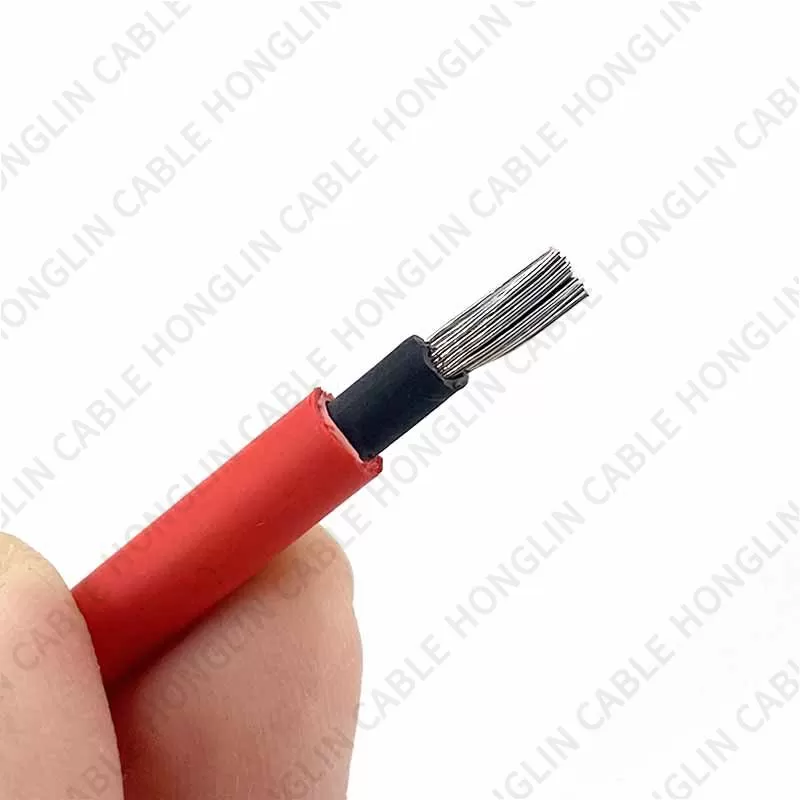

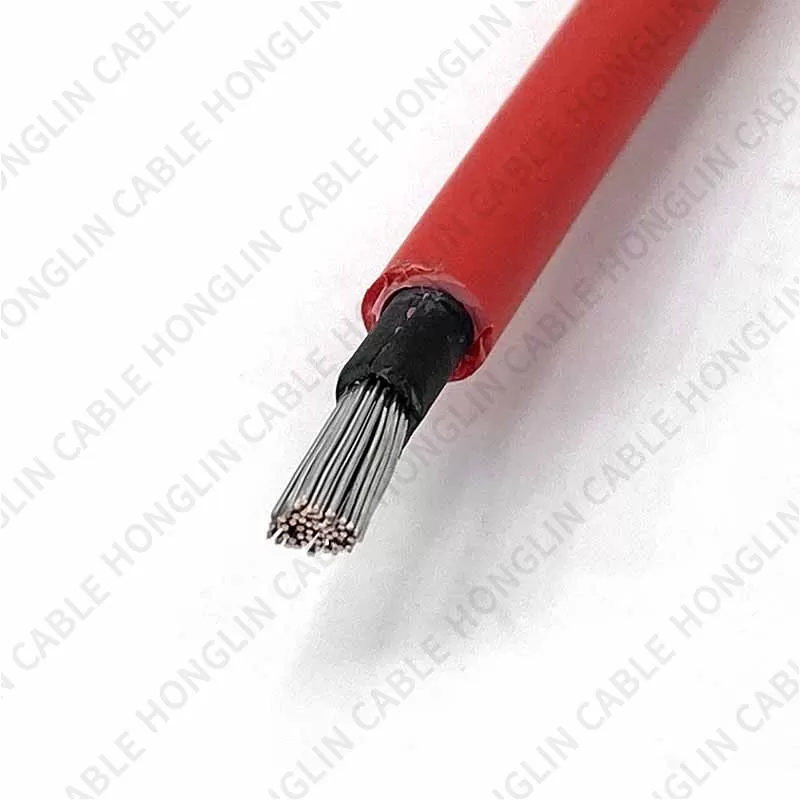

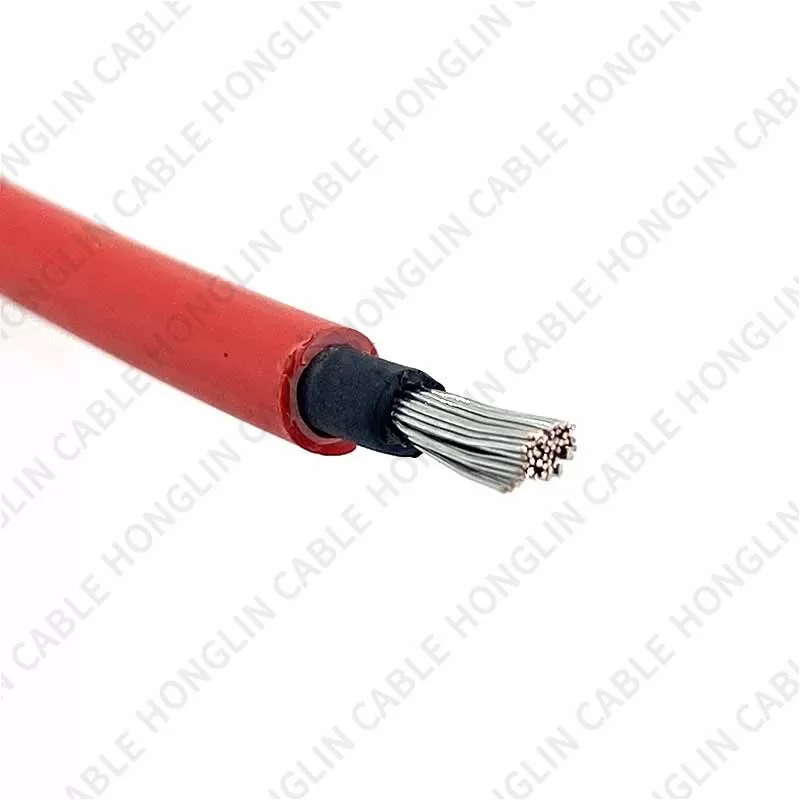

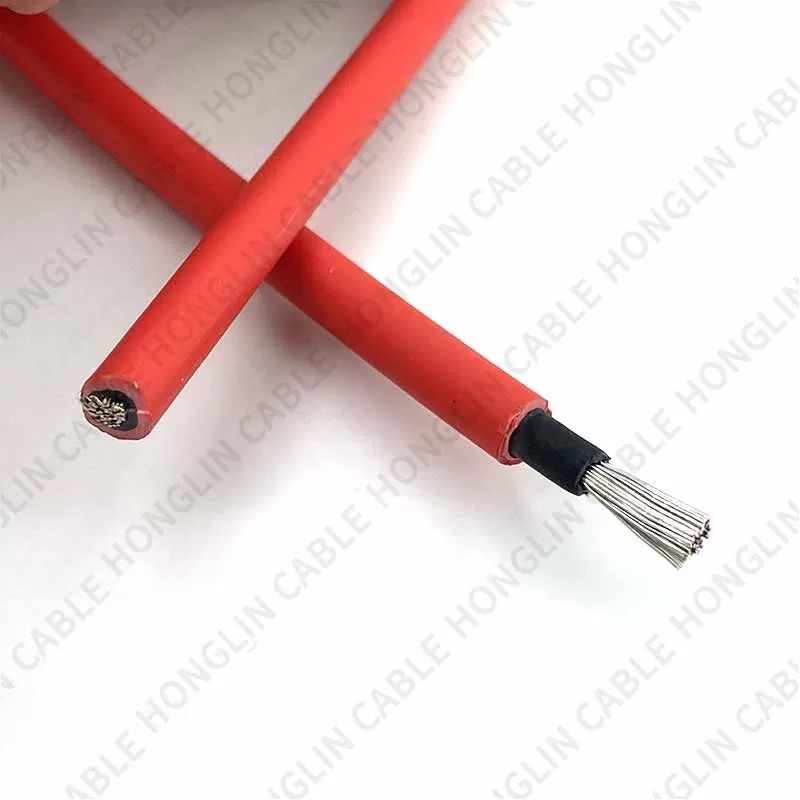

The 0.6/1KV solar cable is a tinned copper conductor, XLPO/XLPE insulation, and XLPE sheath, which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.
Large photovoltaic power generation
Photovoltaic industrial building
City street light Large photovoltaic power generation
Large photovoltaic power generation in public place
Rueal building Large photovoltaic power generation
photovoltaic installation drawing
EN 50618、TUV 2PfG 1169
Product name | Solar cable |
Place of Origin | China，Hebei |
Brand Name | Honglin |
Conductor | Tinned copper |
Insulation | XLPO/XLPE |
Core | 1-2 Core |
Working temperature | -40℃-125℃ |
Standard | IEC60228 |
Rated Voltage | 450/750V |
Size | Customization |
Package | 100M/Roll,customize |
single core solar pv power cable
Cross section (mm2) | Conductor Construction | Outer (mm) | Resistance Max. | Current Carring Capacity |
1*1.5 | 30/0.25 | 4.90 | 13.30 | 30 |
1*2.5 | 50/0.25 | 5.45 | 7.89 | 41 |
1*4 | 56/0.3 | 6.10 | 4.75 | 50 |
1*6 | 84/0.3 | 7.20 | 3.39 | 70 |
1*10 | 142/0.3 | 9.00 | 1.95 | 98 |
1*16 | 228/0.3 | 10.20 | 1.24 | 132 |
1*25 | 361/0.3 | 12.00 | 0.795 | 176 |
1*35 | 525/0.3 | 13.8 | 0.565 | 218 |
1*50 | 720/0.3 | 14.8 | 0.393 | 280 |
1*70 | 988/0.3 | 16.9 | 0.277 | 350 |
1*95 | 1349/0.3 | 18.7 | 0.21 | 410 |
1*120 | 1691/0.3 | 20.7 | 0.164 | 480 |
Twin/Dual core solar pv power cable
Cross section (mm2) | Conductor Construction | Outer (mm) | Resistance Max. | Current Carring Capacity |
2 x 1.5 | 30/0.25 | 8.3 ± 0.2 | 13.30 | 30 |
2 x 2.5 | 50/0.25 | 9.2 ± 0.2 | 7.98 | 41 |
2 x 4 | 56/0.3 | 12.0 ± 0.2 | 4.75 | 50 |
2 x 6 | 84/0.3 | 13.5 ± 0.2 | 3.39 | 70 |
2 x 10 | 142/0.3 | 17.6 ± 0.2 | 1.95 | 98 |
2 x 16 | 228/0.3 | 19.8 ± 0.2 | 1.24 | 132 |
