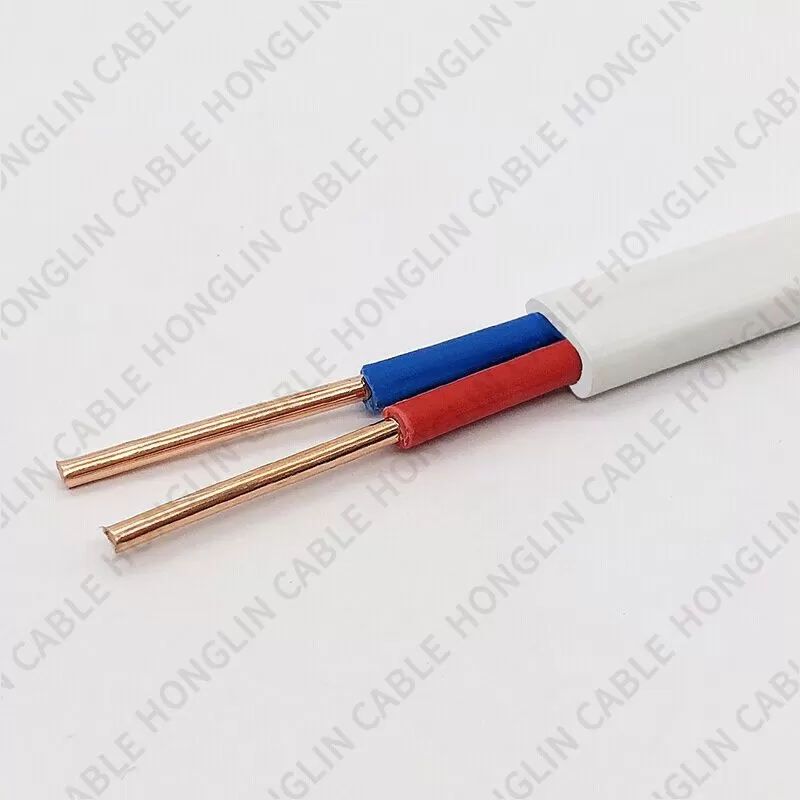

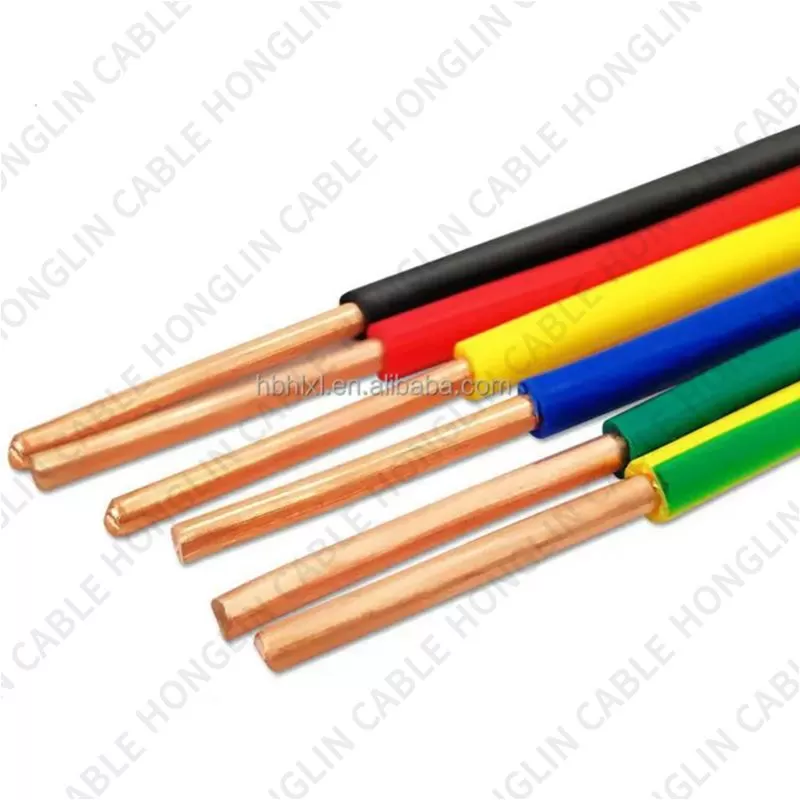

PVC Insulation Copper wire BV/BVR/BVV/BVVB
Scan the QR code

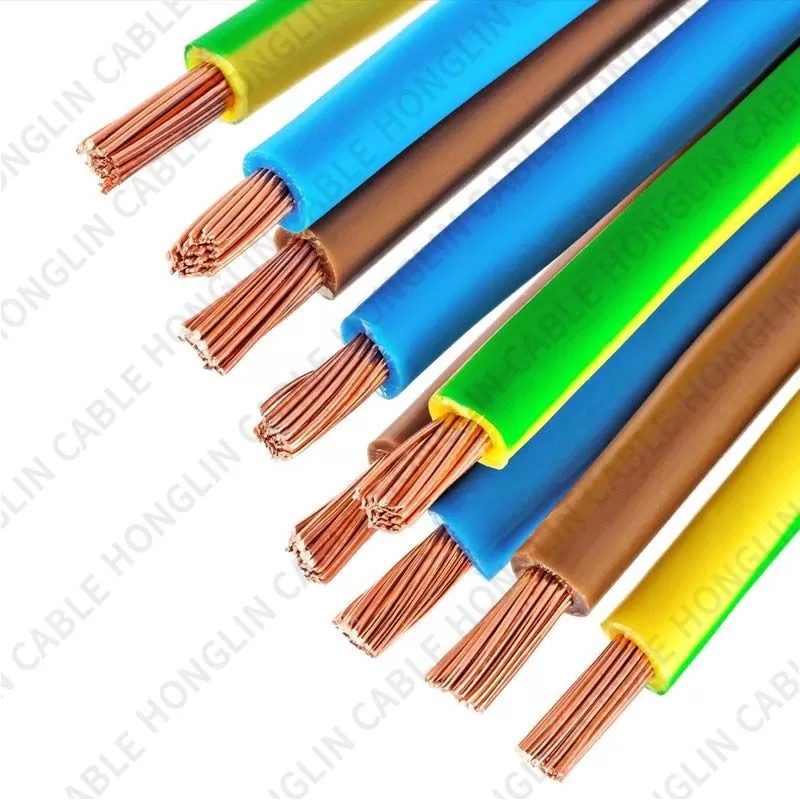

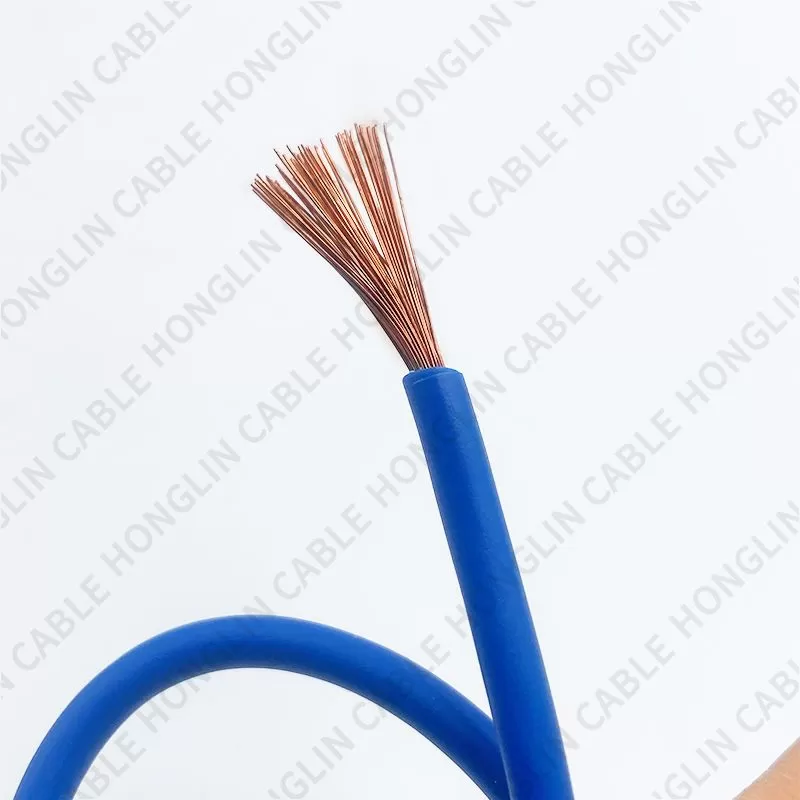

Multi-stranded soft copper conductors
better flexibility and bending performance
Each conductor is insulated with PVC insulation material.
PVC insulation provides electrical insulation and protection of conductors.
Introduction
BVR is the abbreviation of "Bare Copper Conductor PVC Insulated Flexible Cable".
BVR is a type of wire and cable commonly used for electrical wiring in buildings.

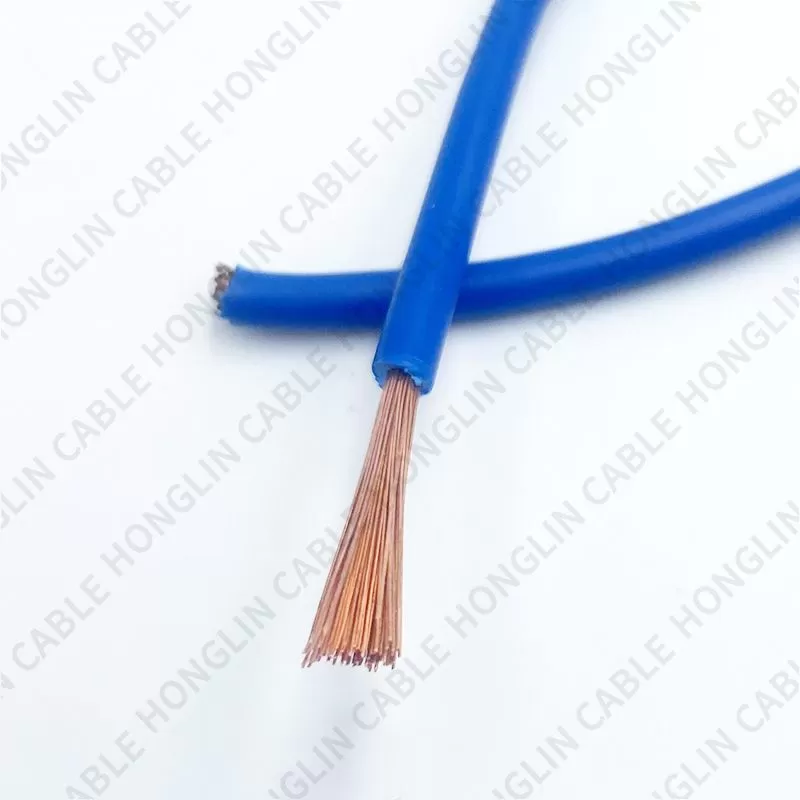

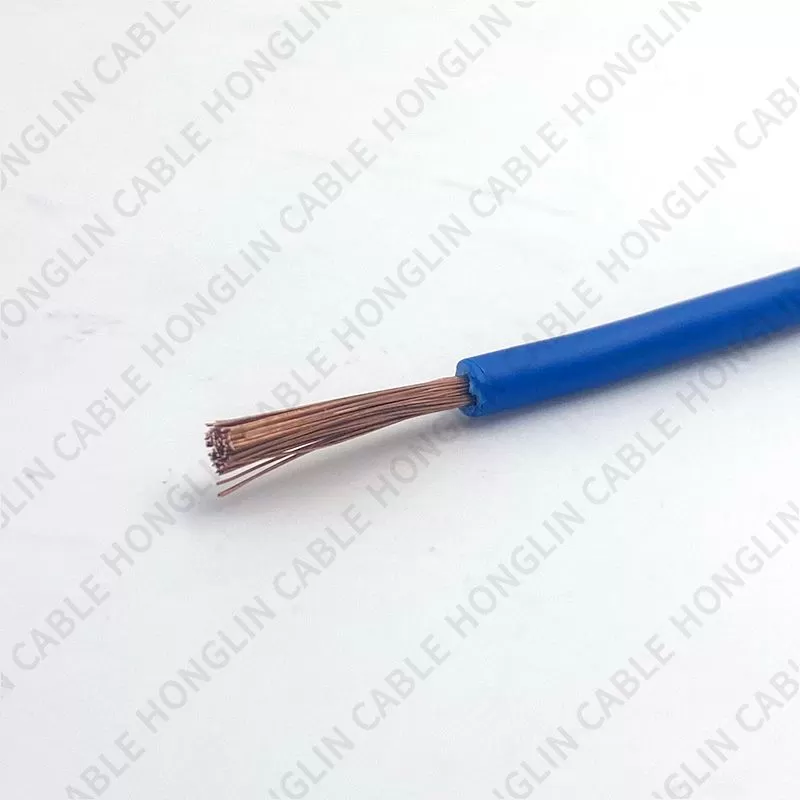

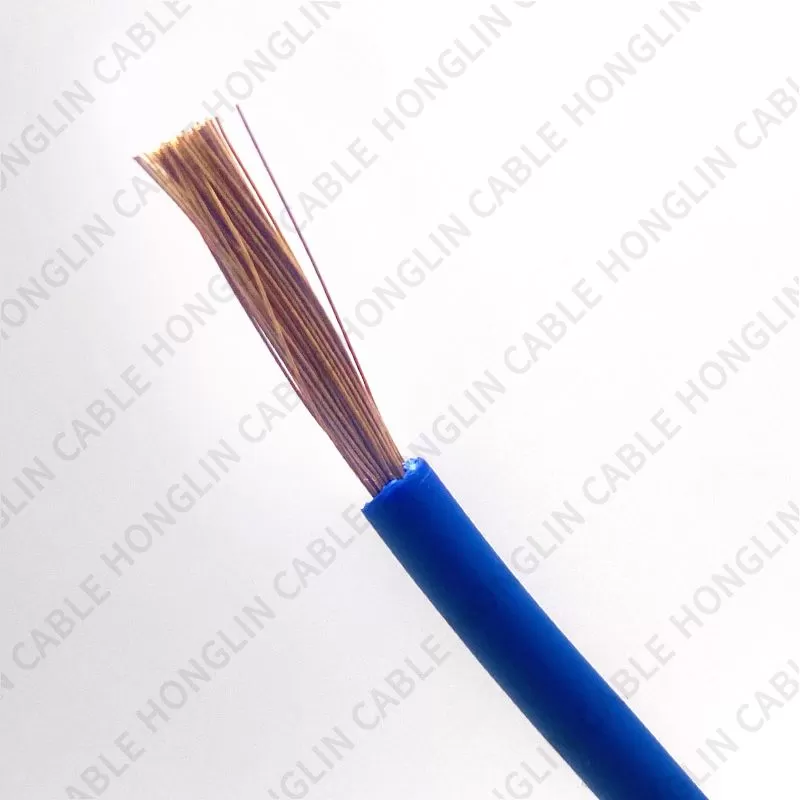

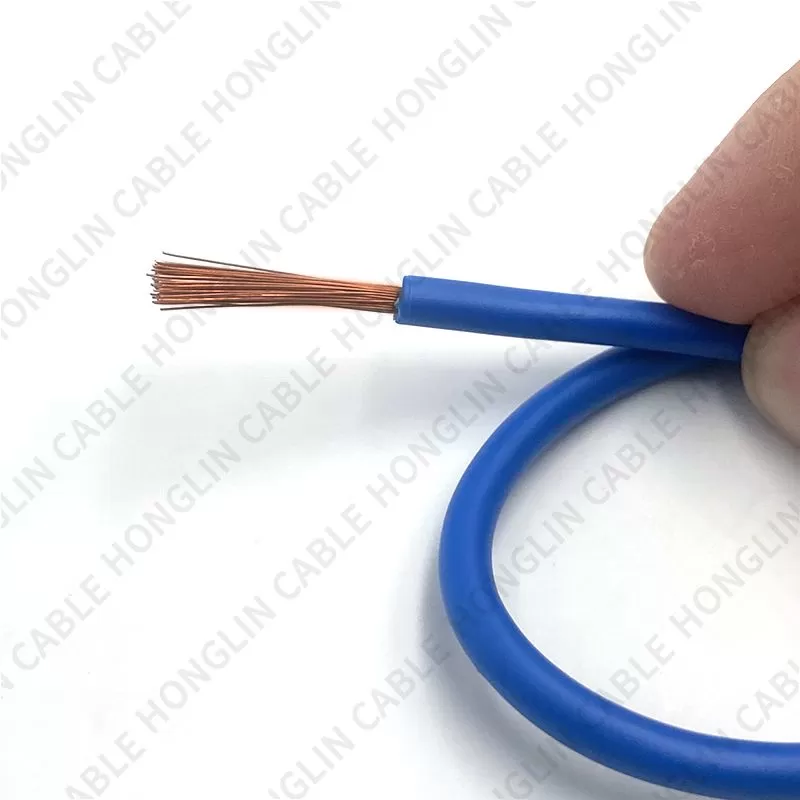

BVR wire and cable use multi-stranded soft copper conductors, each conductor is composed of small copper wire strands. This structure makes the BVR wire have better flexibility and bending performance, and is suitable for occasions that require frequent movement or bending.
Each conductor is insulated with PVC (polyvinyl chloride) insulation material. PVC insulation provides electrical insulation and protection of conductors.
Application
BVR wires and cables are often used in indoor electrical systems where flexible connections are required, such as electrical connecting wires, mobile devices, lamps, etc. It is suitable for applications requiring flexibility and durability.
Specification
| Type | Voltage | Size(mm²) | Conductor Diameter(mm) | Overall Diameter(mm) | Current Value(A) |
| BV | 300/500V | 1×0.5mm² | 0.20 / 16 | 2.1 | 4.0A |
| 1×0.75mm² | 0.20 / 24 | 2.2 | 6.0A | ||
| 1×1.0mm² | 0.20 / 32 | 2.4 | 9.0A | ||
| 450/750V | 1×1.5mm² | 0.20 / 48 | 2.9 | 18A | |
| 1×2.5mm² | 0.25 / 50 | 3.4 | 26A | ||
| 1×4mm² | 0.30 / 56 | 3.9 | 38A | ||
| 1×6mm² | 0.30 / 84 | 4.7 | 44A | ||
| 1×10mm² | 0.40 / 80 | 5.9 | 68A |
Component composition
Packaging: wooden barrel
Goods: finished product + wooden barrel packaging
Certification
Manufacturing process
There are nine steps in the low-voltage power cable production process：stranding machine; extrud; cooling; diameter measurement; Bearing winch; Set meter counter; testing; Spark test; packing
