Soft, easy to bend, good insulation properties
Flexible, easy to bend and fold, and easy to install.
The twisted structure can effectively resist electromagnetic interference and improve signal transmission quality.
The insulation material of RVS wires, polyvinyl chloride (PVC), has high temperature resistance and can work normally within a certain temperature range.
Introduction

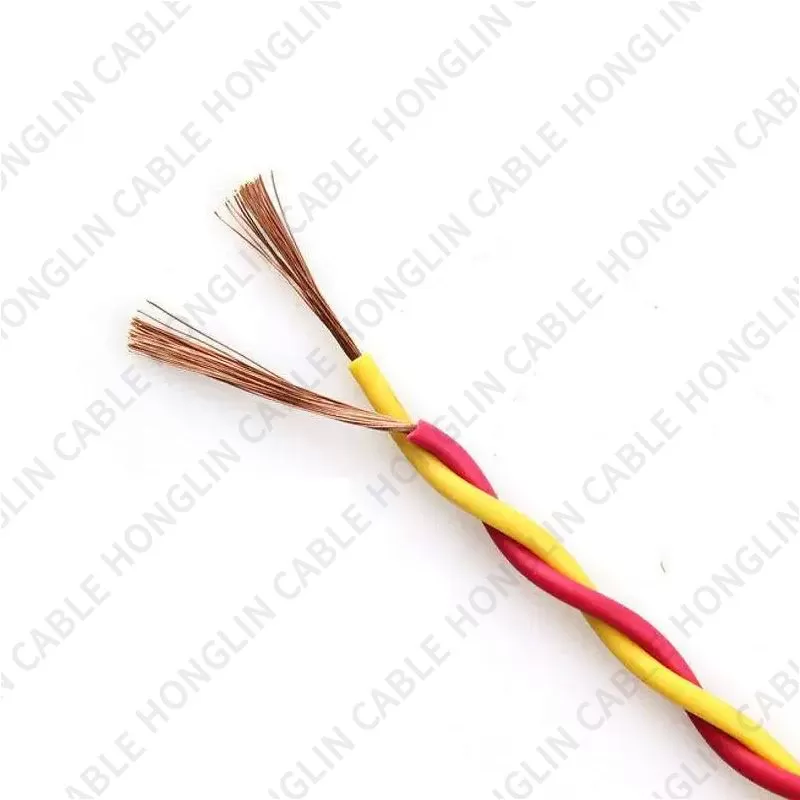

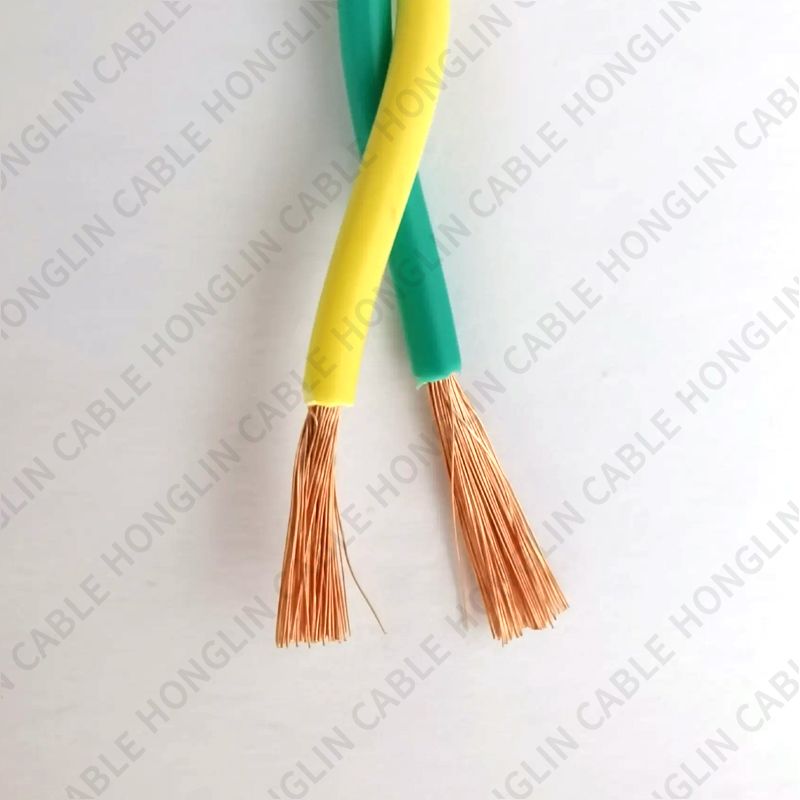

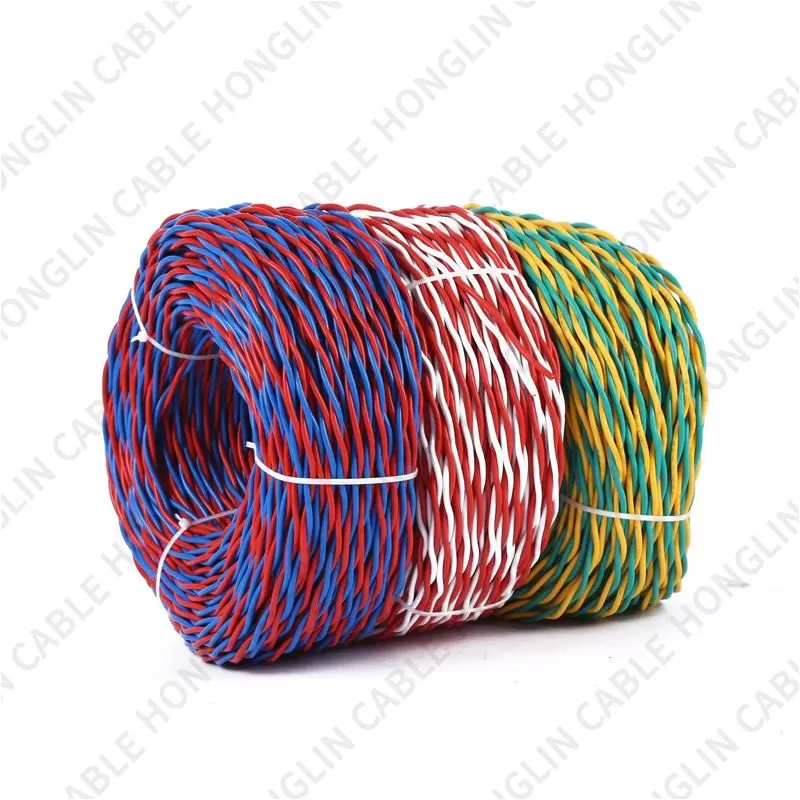

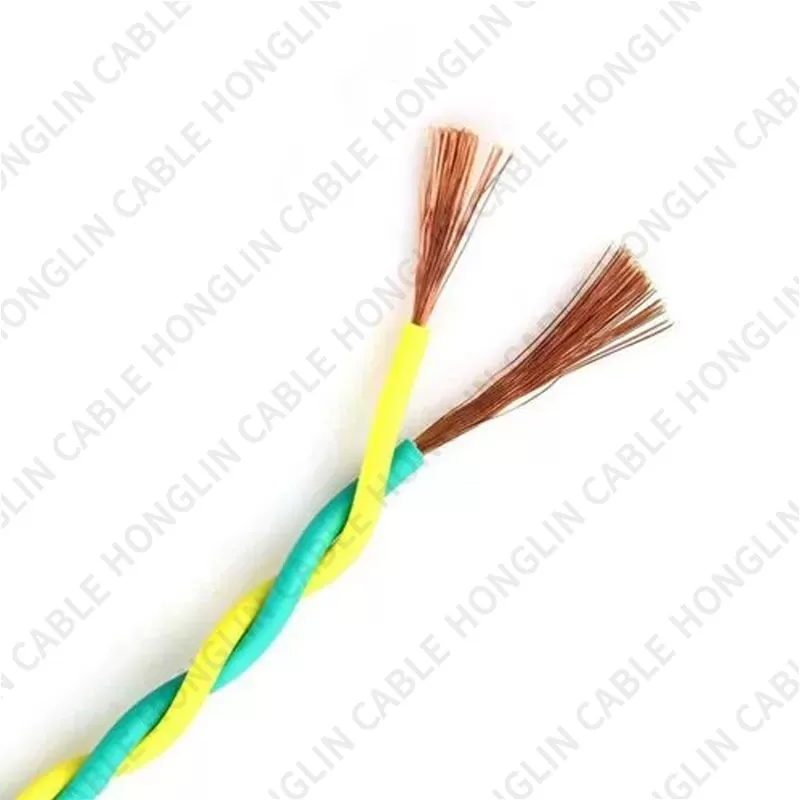

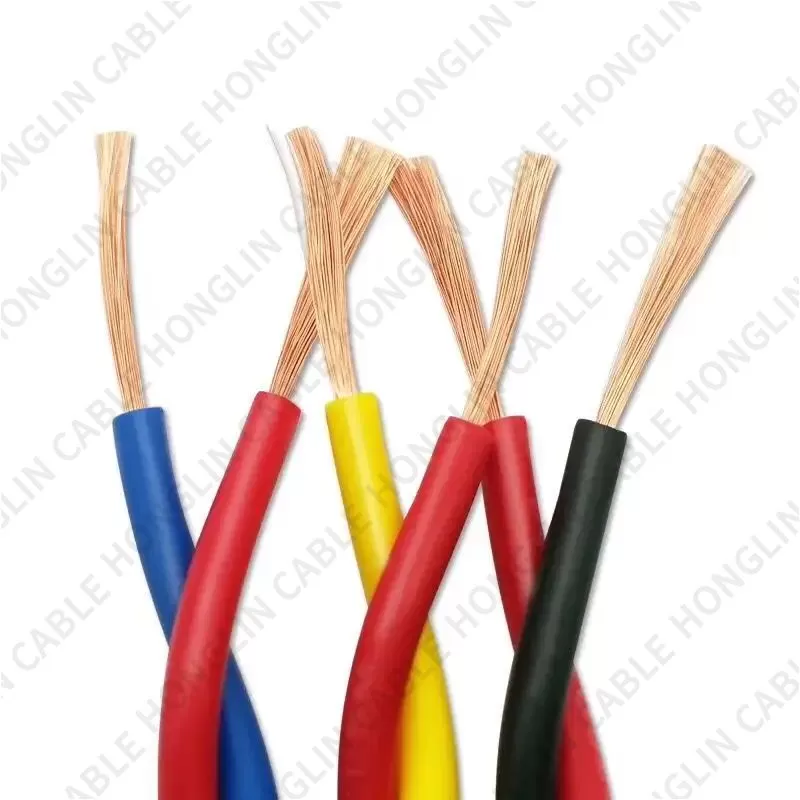

RVS wire, the full name of copper core PVC insulated twisted flexible wire for connection, is a wire made of stranded copper core wires and wrapped with polyvinyl chloride (PVC) insulation material. This kind of wire is characterized by being soft, easy to bend, good insulating properties, and has good electrical conductivity.
Application
1. Mostly used in detector lines of automatic fire alarm systems.
2. Suitable for household appliances, small electric tools, instruments and power lighting wires. The double white core is used to directly connect the lamp holder wire; the red and blue core is used for fire protection, alarm, etc.; the red and white core is used for broadcasting and telephone lines; the red and black core is used for broadcasting lines.
3. Used to connect power amplifiers to audio equipment and broadcast systems to transmit audio signals amplified by power amplifiers.
Specification
| Type | Size | Conductor Diameter | Overall Diameter | Current Value |
| mm² | mm | mm | A | |
| Twisted Pair Wire | 1X0.5mm² | 0.15/28*2 | 2.6 | 4 |
| 2X0.75mm² | 0.15/42*2 | 2.8 | 6 | |
| 2X1.0mm² | 0.20 /32*2 | 2.9 | 9 | |
| 2X1.5mm² | 0.20 / 48*2 | 3.2 | 18 | |
| 2X2.5mm² | 0.20/78*2 | 3.6 | 26 |
Component composition
Packaging: wooden barrel
Goods: finished product + wooden barrel packaging
Certification
Manufacturing process
There are nine steps in the low-voltage power cable production process：stranding machine; extrud; cooling; diameter measurement; Bearing winch; Set meter counter; testing; Spark test; packing
Payment Method
T/T; L/C ; Western Union
